    Ball Screw

    DFS Series

    DFS Series

    Applicable industries：Automation industry, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.

    (1)High Reliability
    SHAC applies stringent quality control standards on every production process.With proper lubrication and use, trouble-free operation for an extended period of time is possible.
    (2) The high efficiency of ball screw is vastly superior than conventional screws. It takes less than 30% torque to make the linear motion into rotary motion.
    (3) High Rigidity and Preload
    The ball screw of SHAC is designed with Gothic arch groove,which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.

    Quote Now

      info@shac-europe.com

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        info@shac-europe.com

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

        Circulation typeModel

        Characteristic

        Single

        Nut

        		Double Nuts
        Internal Circulation typeSFK SFU

        SFI SCI

        		DFU

        DFI

        •Dedicated diameter of screw takes only little space.

        •Applicable to those with smaller lead / the outside diameter of the screw

        External Circulation typeSFV XFVDFV

        •Economy

        •Applicable to larger lead and diameter.

        •Applicable for high loading purpose.

        End-caps Circulation typeSFS SFYDFS

        •Suitable for high speed positioning

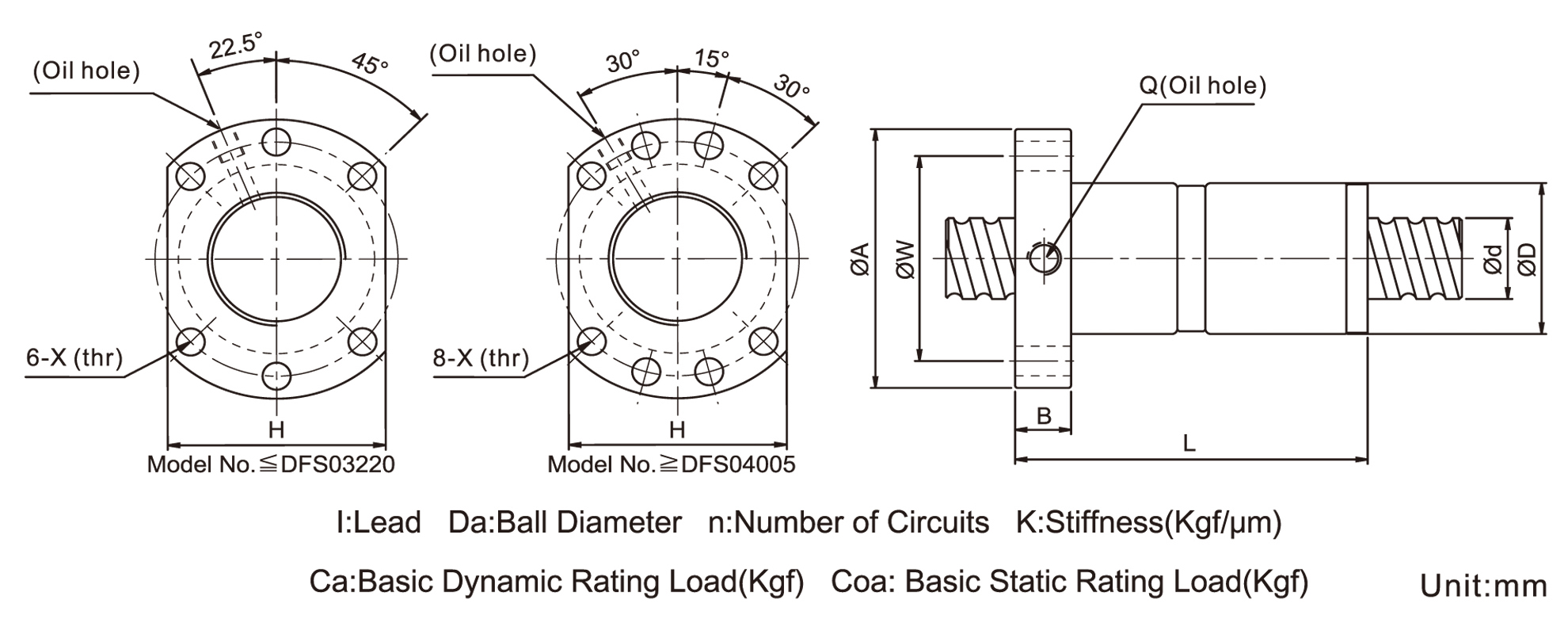

        Size Table of DFS Screws



        Model No.

        d

        l

        Da

        Dimension

        Load Rating

        D

        A

        B

        L

        W

        H

        X

        Q

        n

        Ca(kgf)

        Coa(kgf)

        DFS1605-3.8

        15

        5

        2.778

        28

        48

        10

        73

        38

        40

        5.5

        M6x1

        3.8×1

        1112

        2507

        DFS1605-2.8

        10

        2.778

        28

        48

        10

        97

        38

        40

        5.5

        M6x1

        2.8×1

        839

        1821

        DFS2005-3.8

        20

        5

        3.175

        36

        58

        10

        75

        47

        44

        6.6

        M6x1

        3.8×1

        1484

        3681

        DFS2010-3.8

        10

        3.175

        36

        58

        10

        120

        47

        44

        6.6

        M6x1

        3.8×1

        1516

        3833

        DFS2505-3.8

        25

        5

        3.175

        40

        62

        10

        75

        51

        48

        6.6

        M6x1

        3.8×1

        1650

        4658

        DFS2510-3.8

        10

        3.175

        40

        62

        12

        122

        51

        48

        6.6

        M6x1

        3.8×1

        1638

        4633

        DFS2520-2.8

        10

        3.939

        50

        62

        12

        140

        51

        48

        6.6

        M6x1

        2.8×1

        1203

        2695

        DFS3205-3.8

        32

        5

        3.175

        50

        80

        12

        82

        65

        62

        9

        M6x1

        3.8×1

        1839

        6026

        DFS3210-3.8

        31

        10

        3.969

        50

        80

        13

        122

        65

        62

        9

        M6x1

        3.8×1

        2460

        7255

        DFS3220-2.8

        20

        3.969

        50

        80

        12

        160

        65

        62

        9

        M6x1

        2.8×1

        1907

        5482

        DFS4005-3.8

        40

        5

        3.175

        63

        62

        15

        85

        78

        70

        9

        M8x1

        3.8×1

        2018

        7589

        DFS4010-3.8

        38

        10

        6.35

        63

        62

        14

        123

        78

        70

        9

        M8x1

        3.8×1

        5035

        13943

        DFS4020-2.8

        20

        6.35

        63

        62

        14

        162

        78

        70

        9

        M8x1

        2.8×1

        3959

        10715

        DFS5005-3.8

        50

        5

        3.175

        75

        75

        15

        85

        93

        85

        11

        M8x1

        3.8×1

        2207

        7542

        DFS5010-3.8

        48

        10

        6.35

        75

        75

        18

        138

        93

        85

        11

        M8x1

        3.8×1

        5638

        17852

        DFS5020-3.8

        20

        6.35

        75

        75

        18

        218

        93

        85

        11

        M8x1

        3.8×1

        5749

        18485
