GLC 50

Question 1

Q: What professional certificates do you have？

Answer

A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

Question 2

Q: Can I get a sample?

Answer

A: Yes, sample is available. If you are interested, you can contact us by e-mail (sales@SHAC.com) to get more photos and information.

Question 3

Q: Delivery Date?

Answer

A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

Question 4

Q: What is your shipping optional?

Answer

A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

Question 5

Q: Whether to accept customized products?

Answer

A: You can contact us by e-mail (sales@SHAC.com ) and we will recommend the most suitable project according to your requirements.

Question 6

Q: What is your payment methods?

Answer

A: T/T in advance.

Question 7

Q: Which countries do you have distributor?

Answer

A: SHAC agent in Asia: Singapore, Japan, India
SHAC agent in Europe: Hungary, Turkey, Israel
SHAC agent in South America: Brazil

Question 8

Q: Where is your main market?

Answer

A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

Question 9

Q: Can I be a SHAC agent?

Answer

A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail (sales@SHAC.com ) , we can start talk and get to know more about each other.

Technical Parameters	Type		GLC-50	GLC-50D2
	Driving Method		Linear Motor Driven Type With Iron Core
	Repetitive Accuracy		±2μm
	Strength	X-X	20μm/300mm
		Y-Y	20μm/300mm
	Max load		5 kg
	Max Speed		4 m/s
	Max Accelerated Speed		4G
Technical Parameters	Peak Current		3.4Arms
	Continuous Current		1.1Arms
	Peak Thrust		150N
	Continuous Thrust		50 N
	Interphase Resistance		24.6Ω
	Interphase Inductance		70.2 mH
	Maagnetic Pole Distance		20mm
Basic Specification	Standard Stroke		50-1650 mm/50 pitch	120-1520 mm/100 pitch
	Max Outline of Main Engine’s Cross Section		55×60
	Home Sensor		PM-Y45(NPN)

GLC50

Iron-Core Flat Linear Motor

GLC 50

GLC Series

Frequently Asked Questions

Q: What professional certificates do you have？

Q: Can I get a sample?

Q: Delivery Date?

Q: What is your shipping optional?

Q: Whether to accept customized products?

Q: What is your payment methods?

Q: Which countries do you have distributor?

Q: Where is your main market?

Q: Can I be a SHAC agent?

Get Quote Now!

Popular Recommendations

KS 60

SHF Series – Linear Bearing

ITO 160

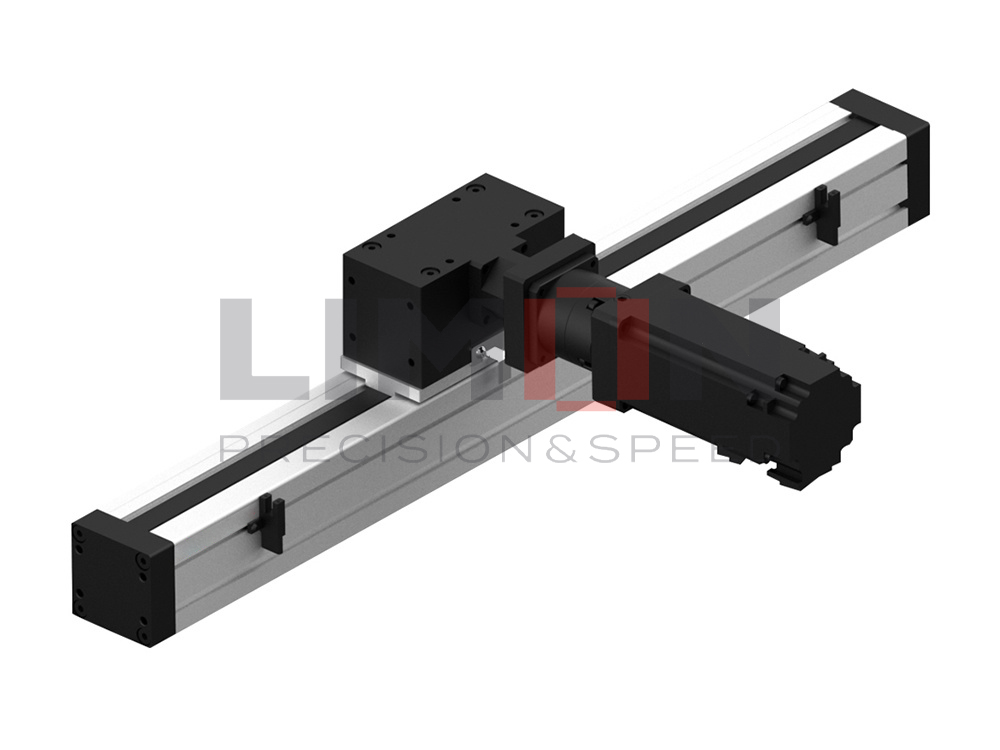

ITZ60
