Overview:

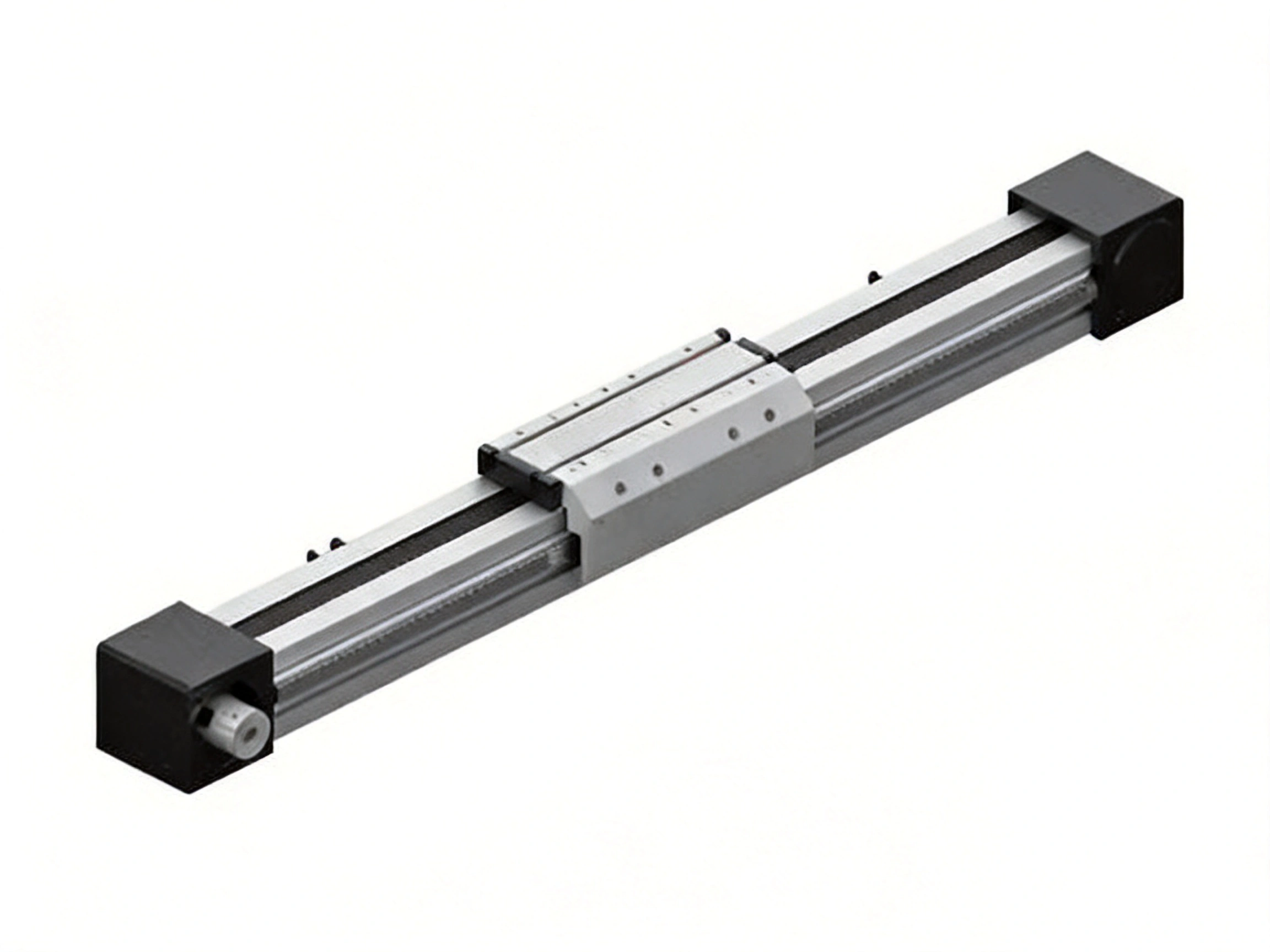

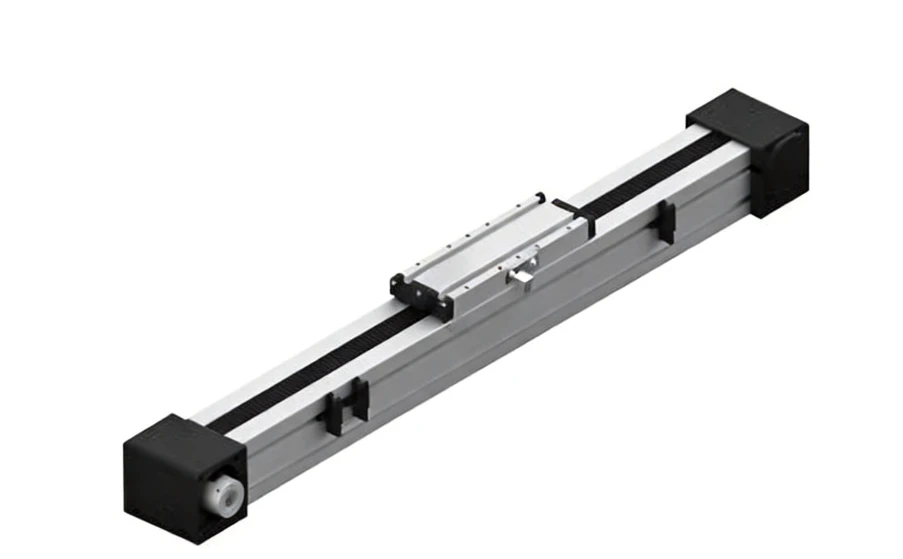

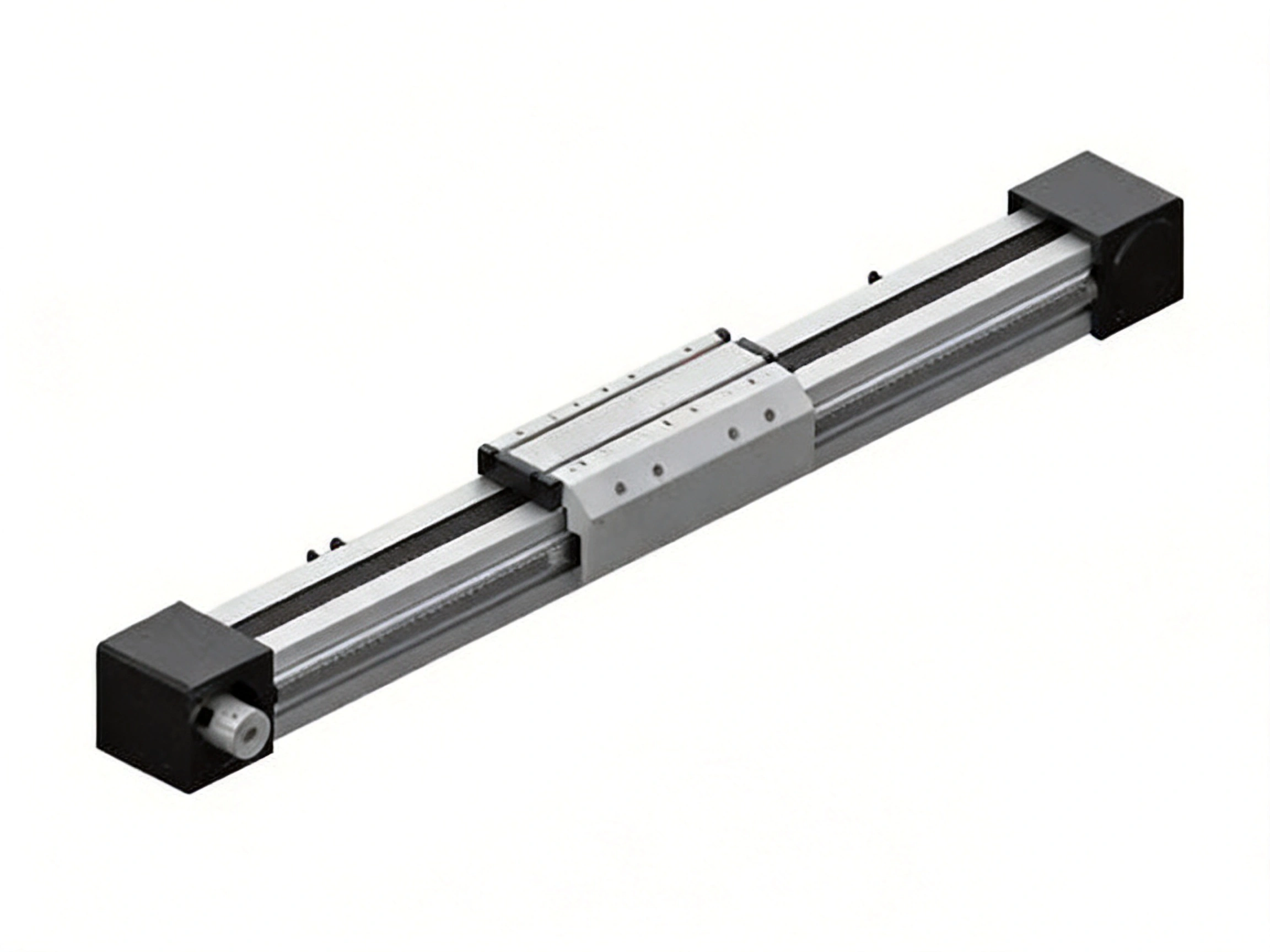

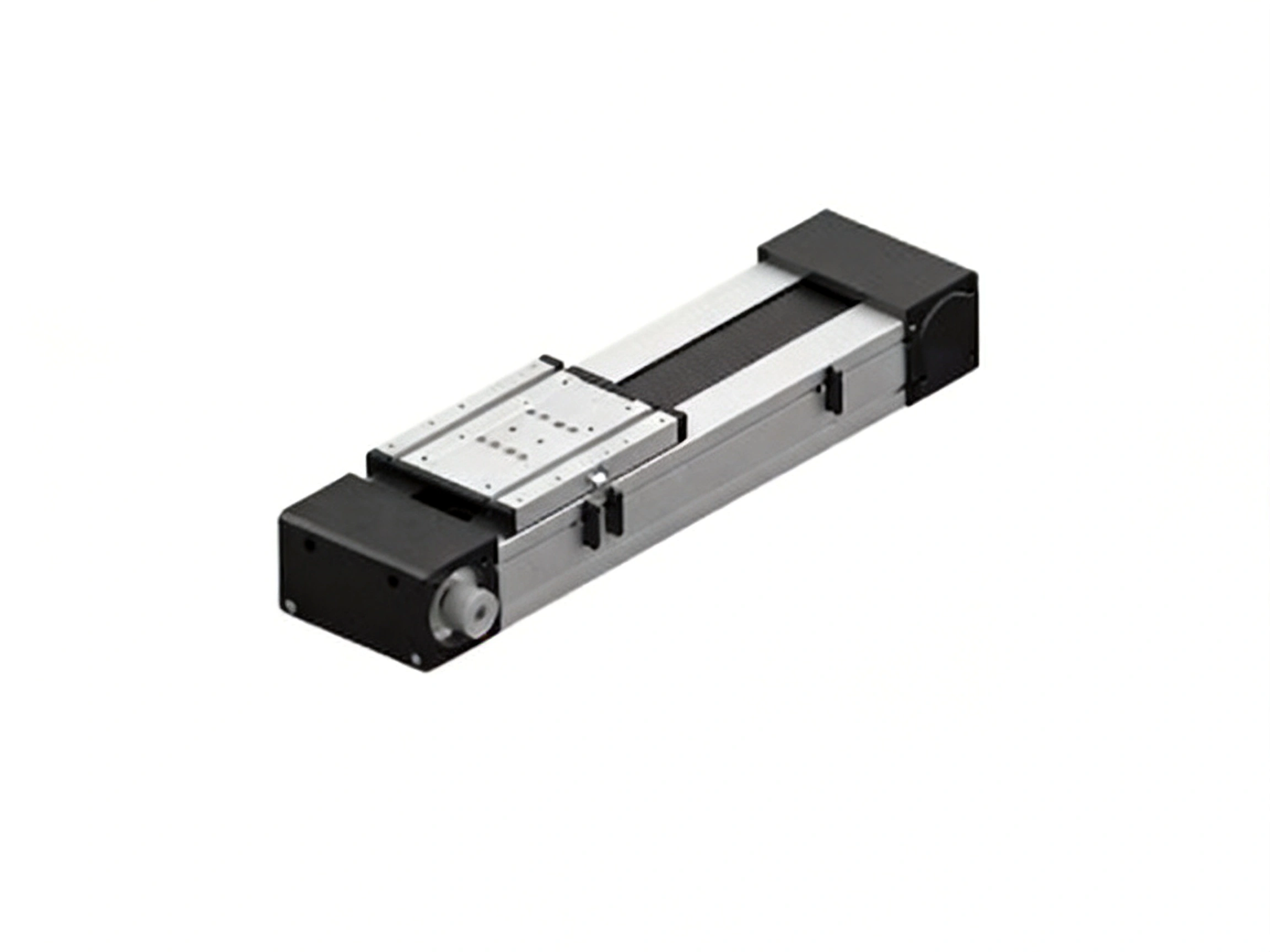

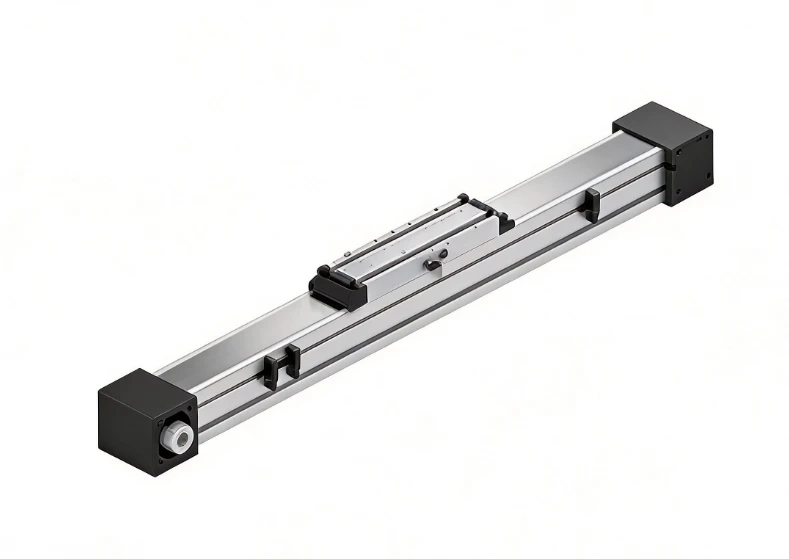

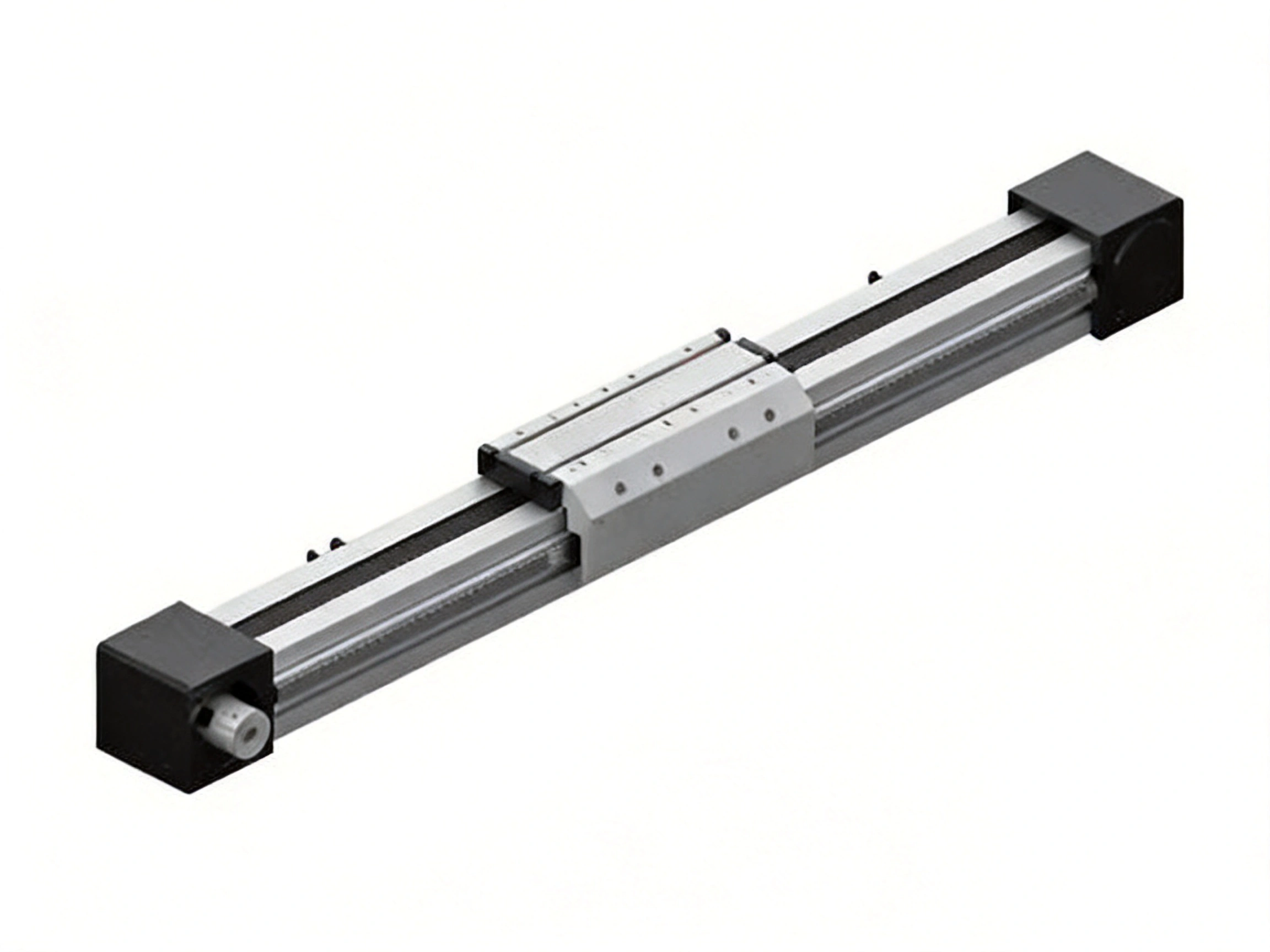

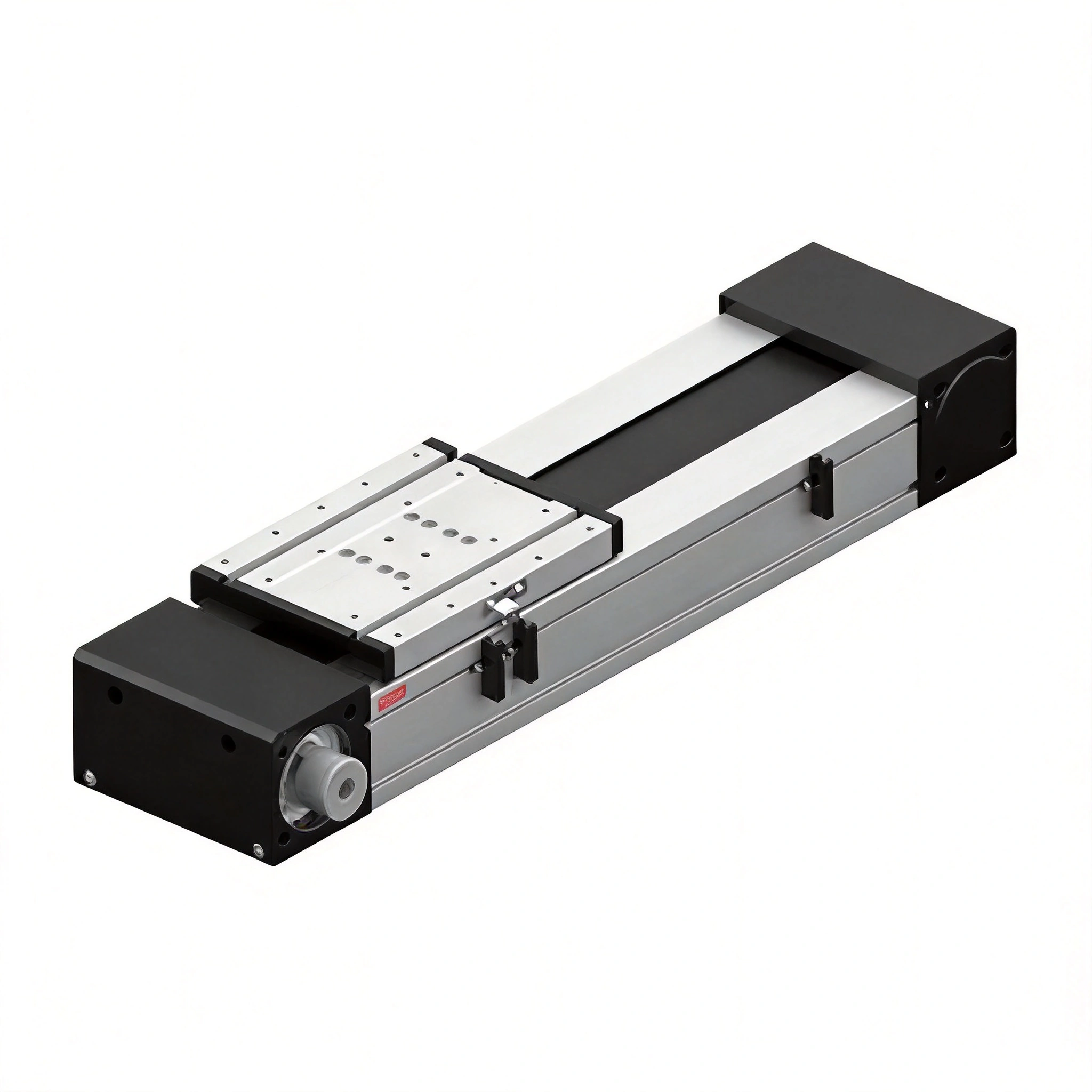

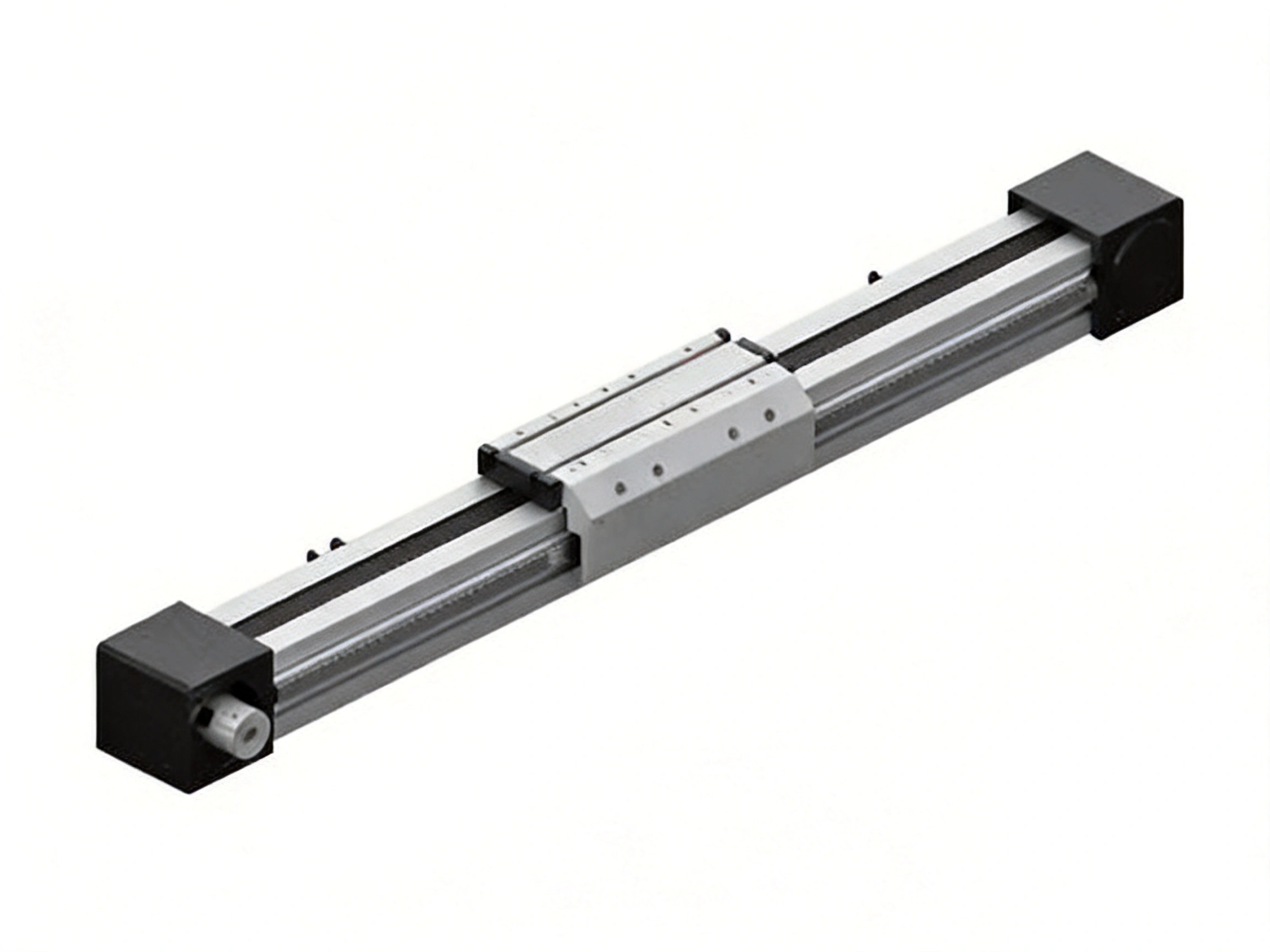

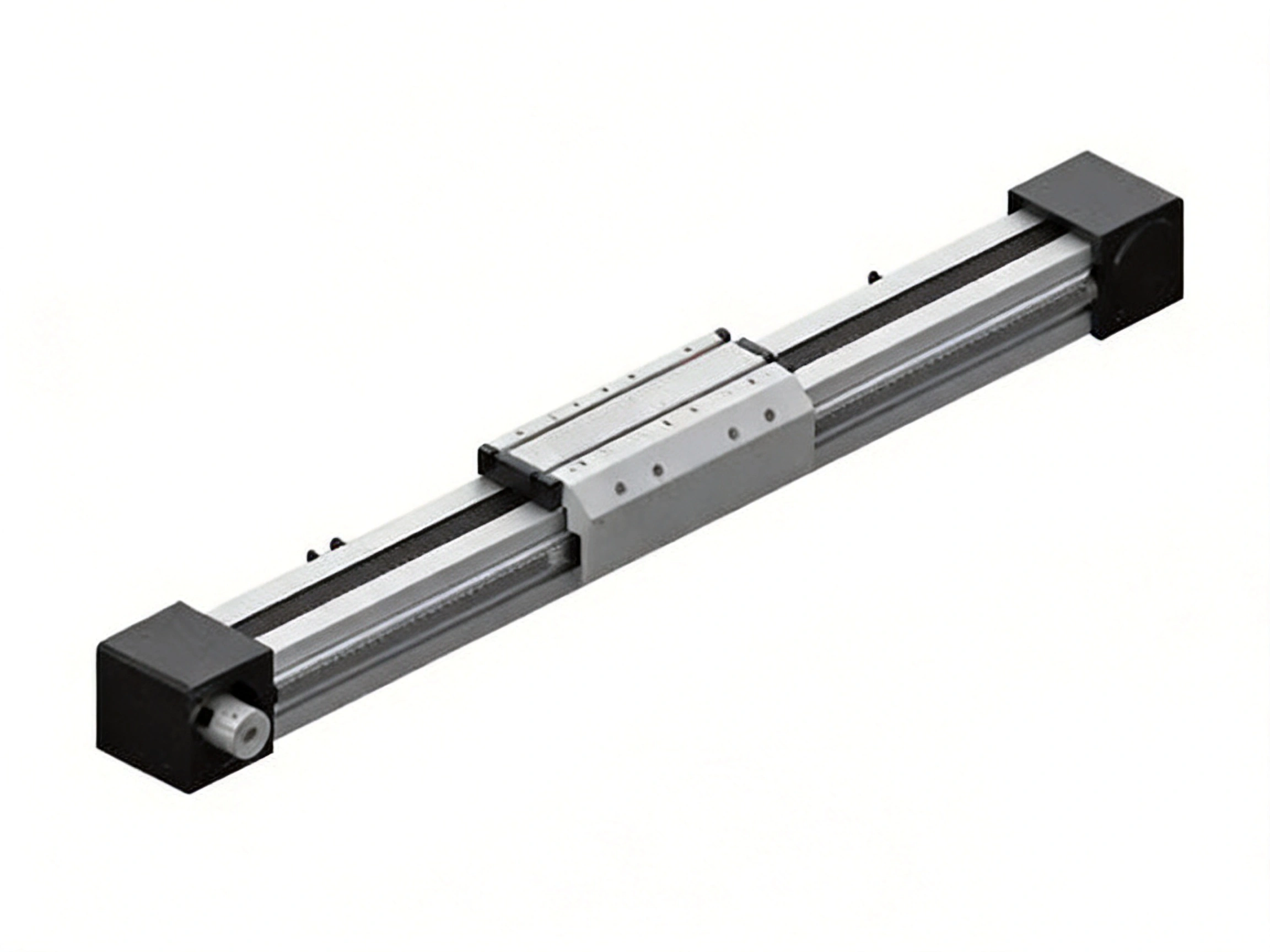

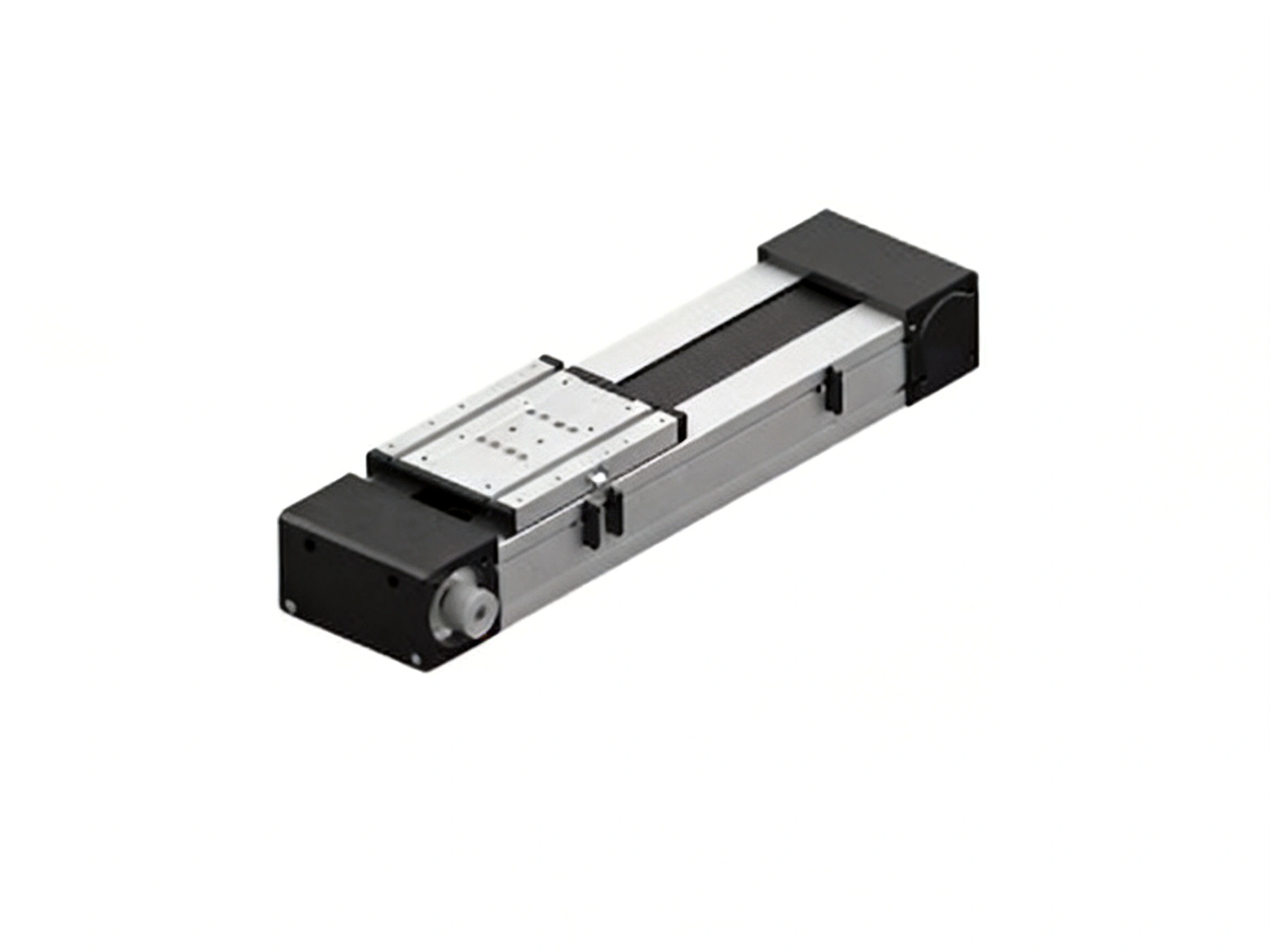

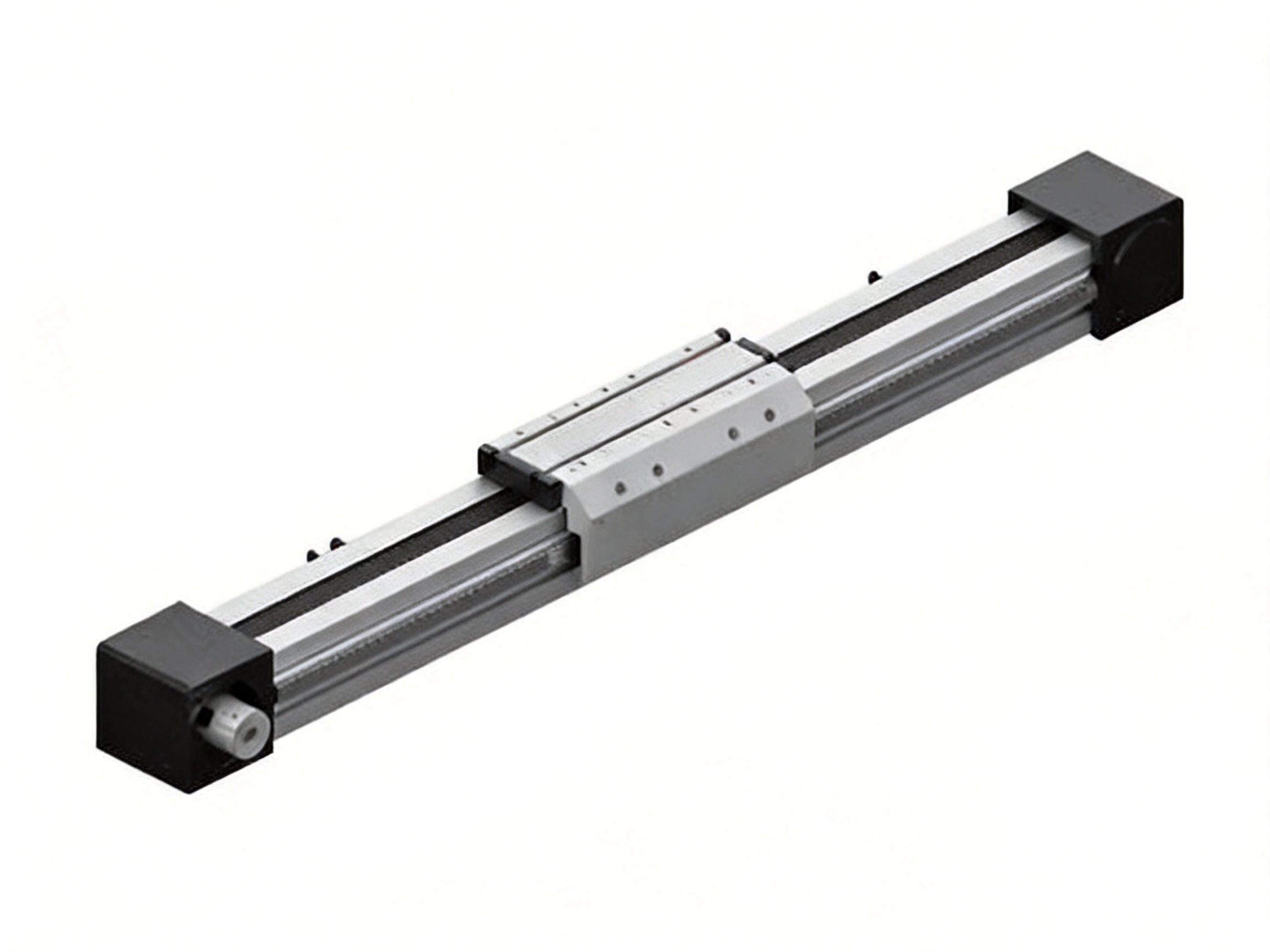

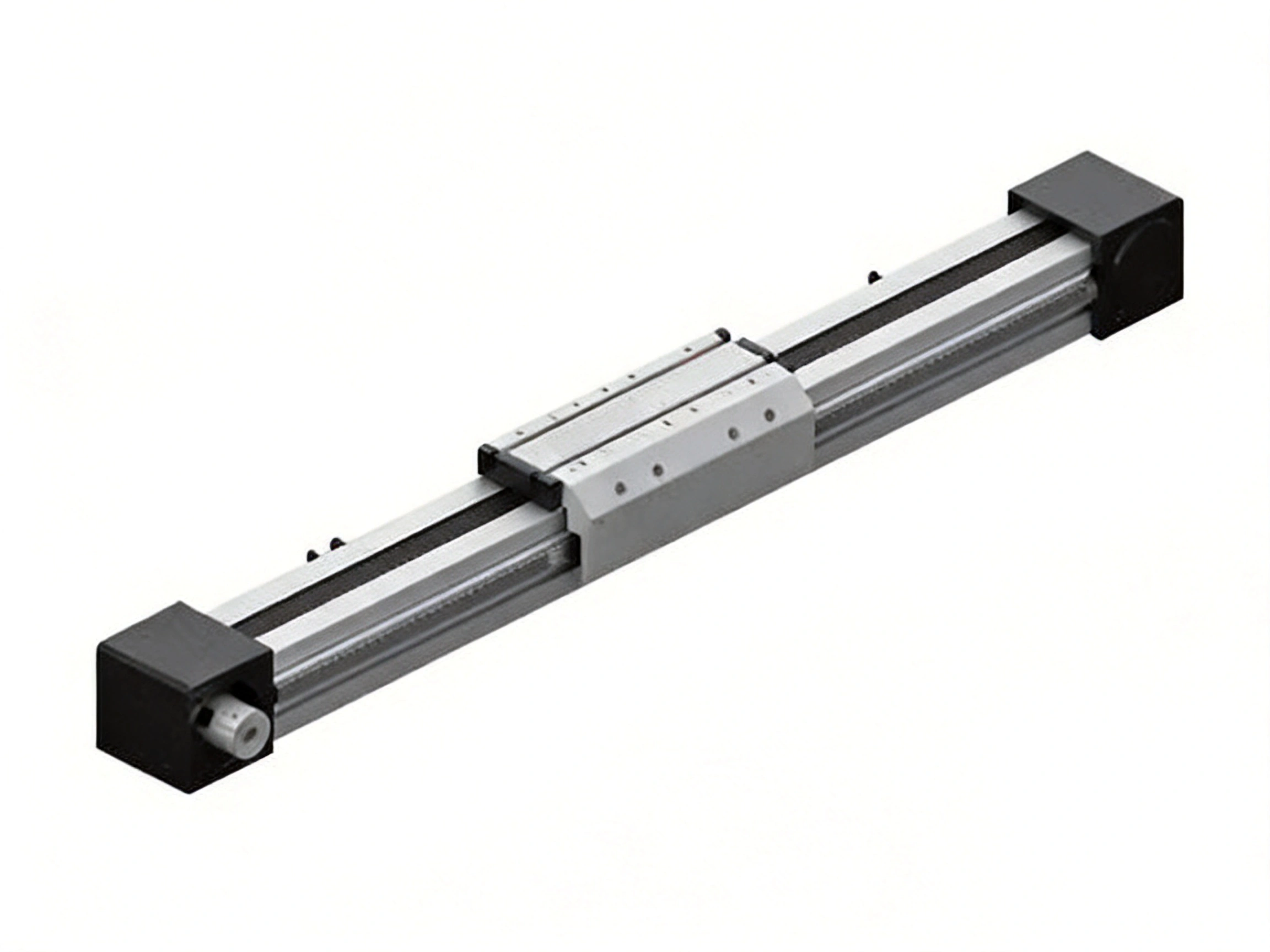

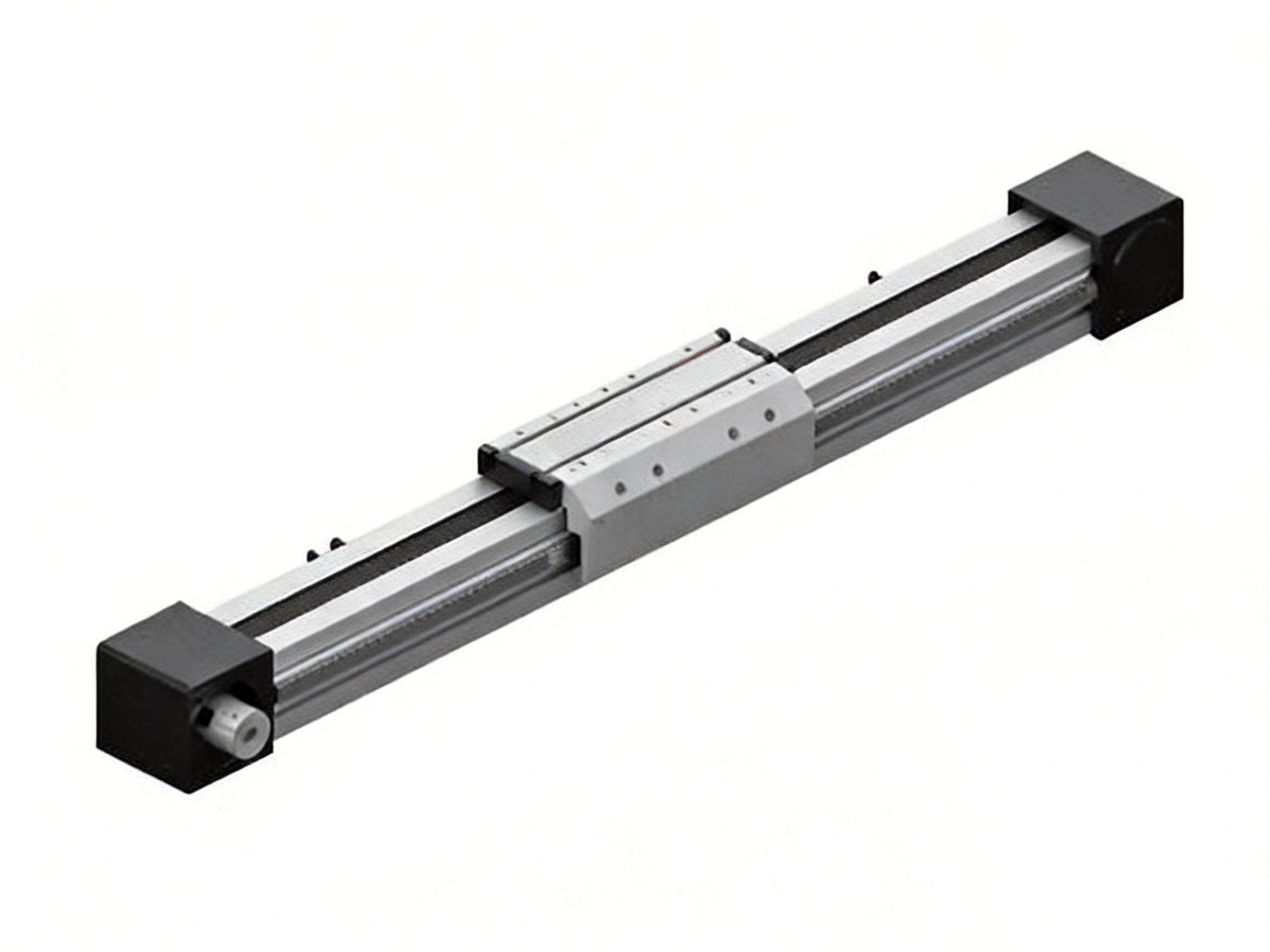

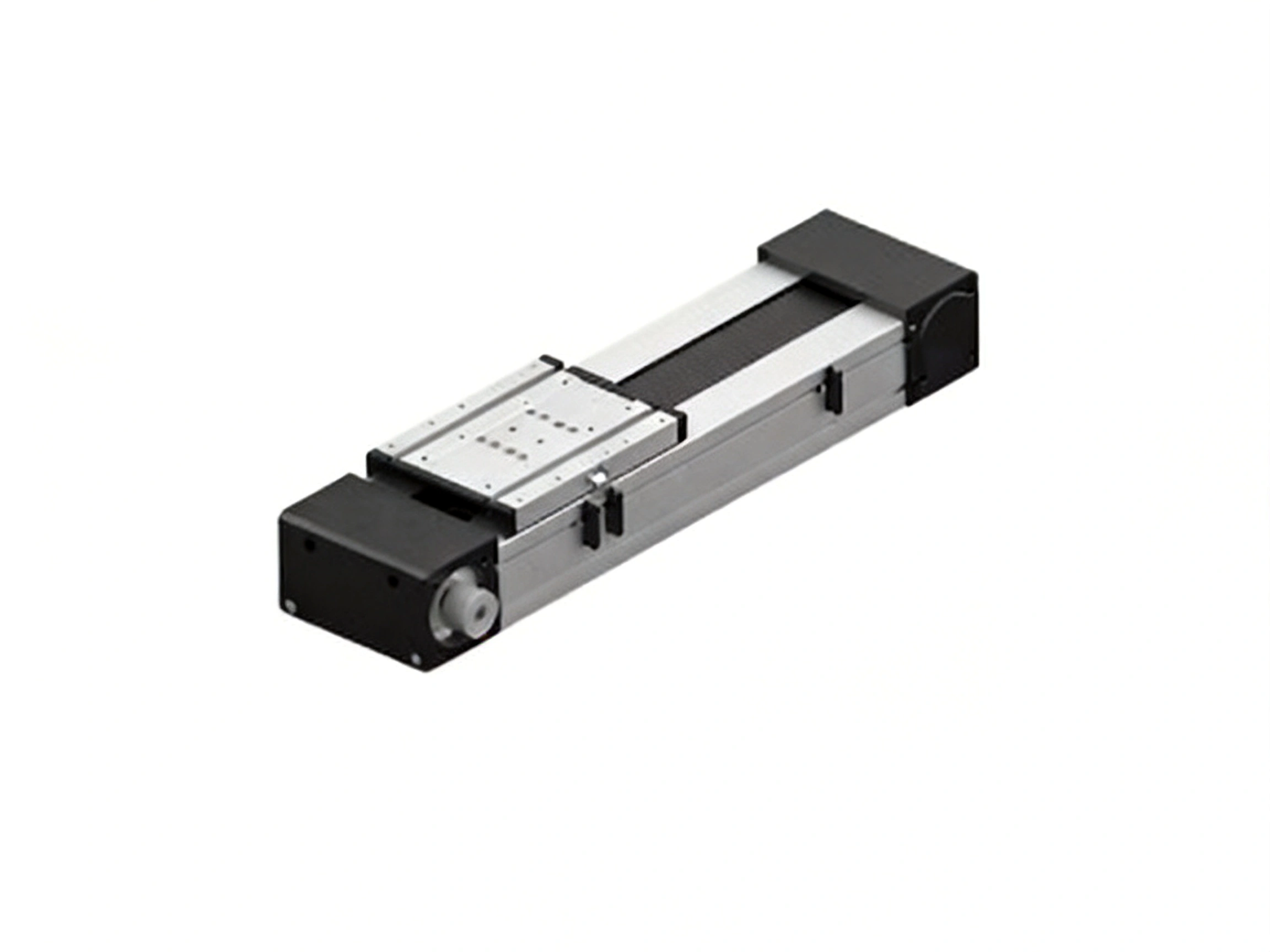

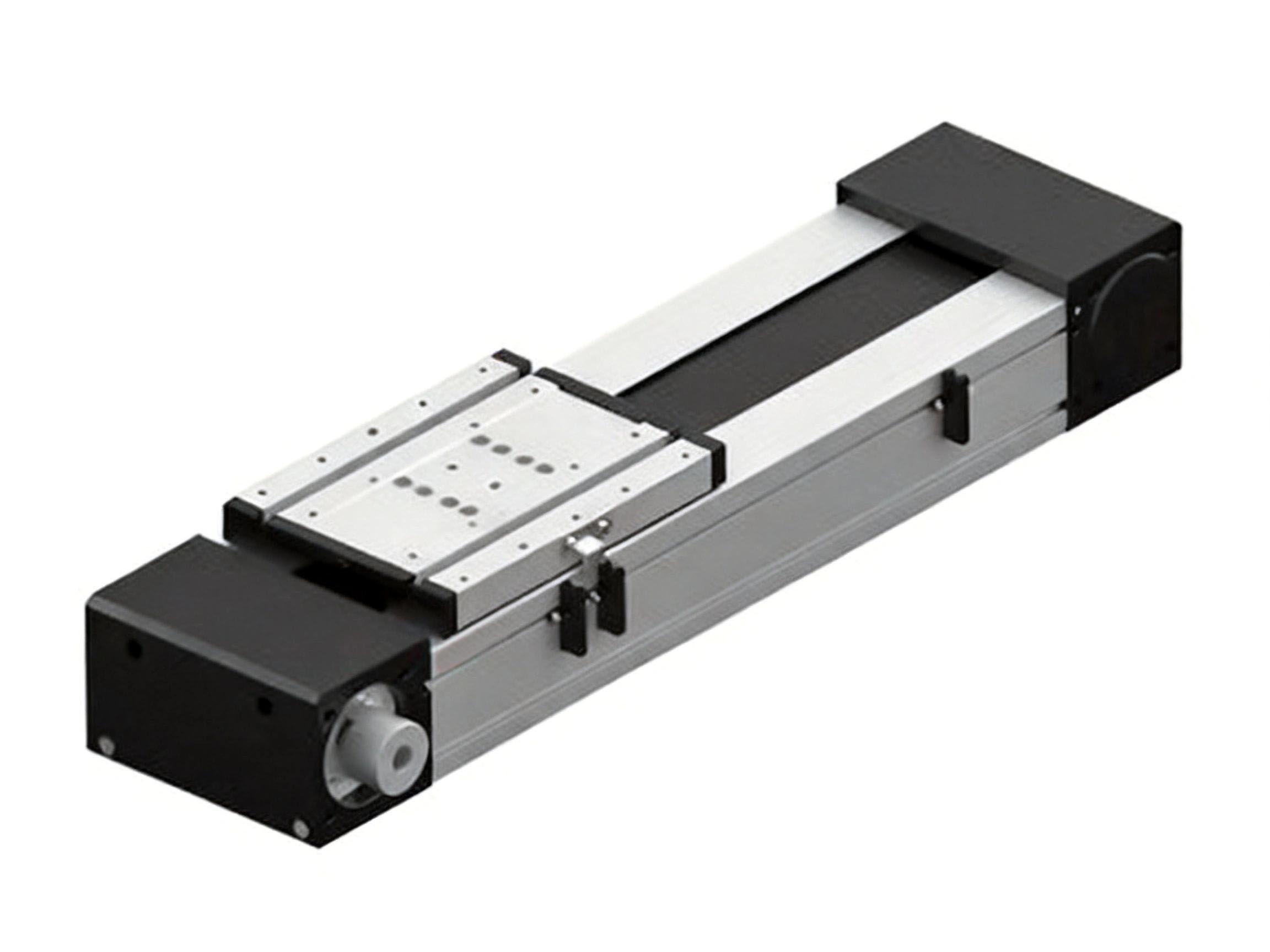

ITO and ITC series modules are belt-driven linear actuators, designed based on the preferences of the European market, featuring a square profile design.

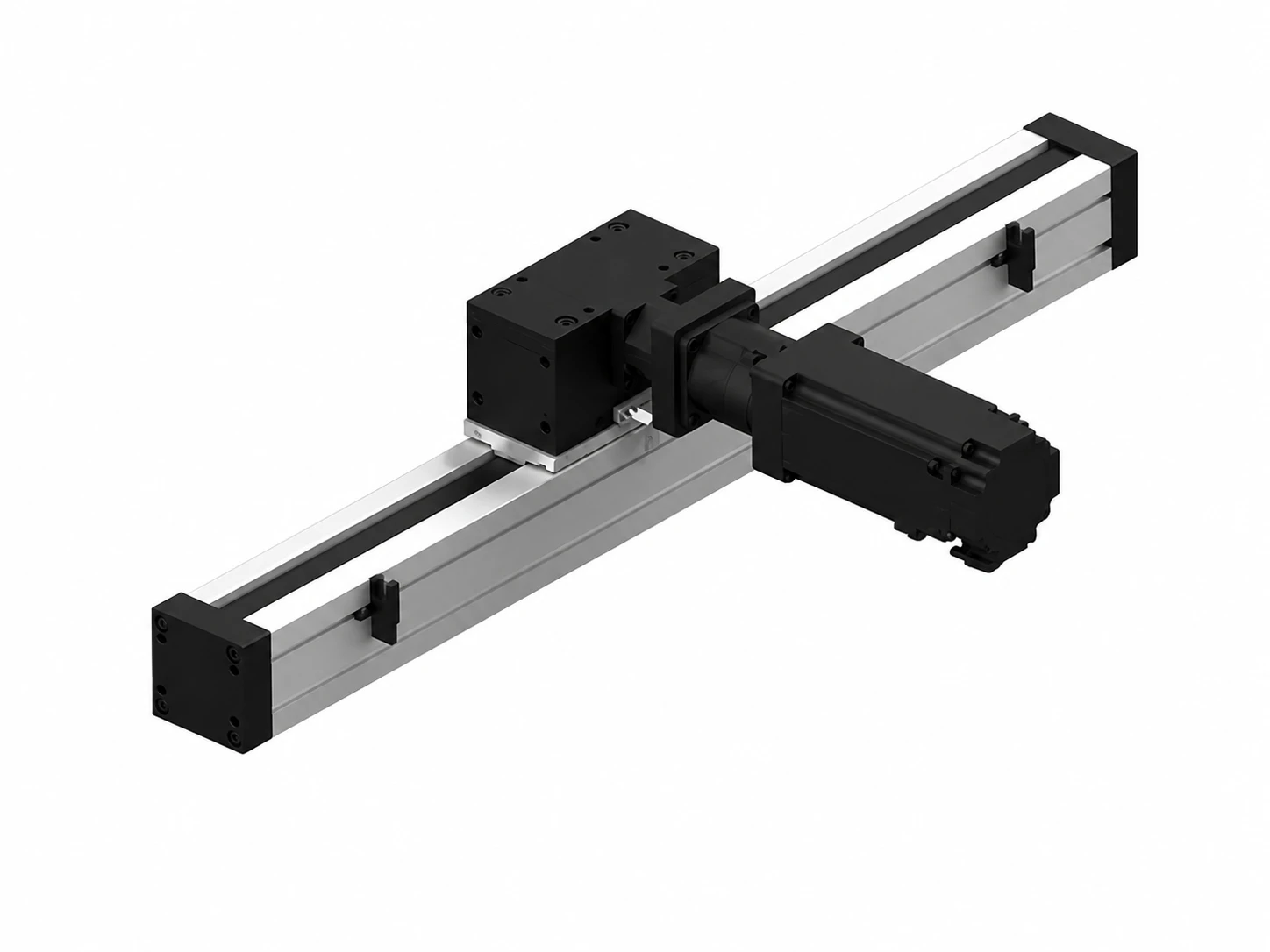

ITZ series modules are belt-driven linear actuators, designed based on the preferences of the European market, featuring a square profile design, specifically designed for the Z-axis usage.
Basic info:
Drive Type: Belt driven type, open and close type
Stroke:
ITO/ITC series: 4000mm (standard), I80/100 can be joint to a longer stroke. (Unlimited)
ITZ series: max 1500mm
Characteristics:
Flexible Motor Collocation
- The integrated structure for pulley and coupling could enhance concentricity and prevents slippage, reduce the motor’s transverse installation length to save space on the machine.
- Reduce the motor’s transverse installation length to save space on the machine.
- The motor mount can be put on the module in any direction and changed according to customer’s different requirement.
Splicable Profile
- For a larger range of application possibilities, profles can be spliced up to 12 meters in length.
Integrated Oil Injection Hole
- By using an external integrated oil injection hole design,all linear blocks can be lubricated at once without the need for disassembly maintenance.
Profile with Bracket Design
- Impossible of being pressed down,the timing belt creates an enclosed zone inside that effectively inhibits foreign objects from entering.
- When used for long strokes, the timing belt does not sag, preventing friction with the internal structure.
- Stop the timingbelt from fluctuiting and lessen the loudness.
ITZ series use Ω Type Timing Belt
- The timing belt has a type design that makes it especially ideal for quick, long-distance grabbing and handling because the motor and reducer donot move with the unit body.
Industry:
- Automated Production Line – Automotive assembly, electronics manufacturing, home appliance production
- Electronics & Semiconductor – Chip packaging, SMT placement, LCD inspection
- Packaging & Logistics – Food packaging, parcel sorting, warehouse automation
- Medical Equipment – Diagnostic instruments, testing devices, surgical robots
- Printing & Advertising – Large-format printing, laser engraving, digital printing
- Research & Laboratory – Lab instruments, sample testing, biotechnology
- Food & Beverage – Filling machines, labeling machines, packaging lines
- New Energy Industry – Lithium battery production, solar panel assembly
