    LMF/K/HP_L Series – Linear Bearing

    Linear Bearing

    LMF/K/HP_L Series – Linear Bearing

    LMF/K/HP_L Series

    Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.

    1. enable high precision linear motion on round shafts
    2. sustain heavy loads with low noise and high stiffness
    3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

    Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components.

    Quote Now

      info@shac-europe.com

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download

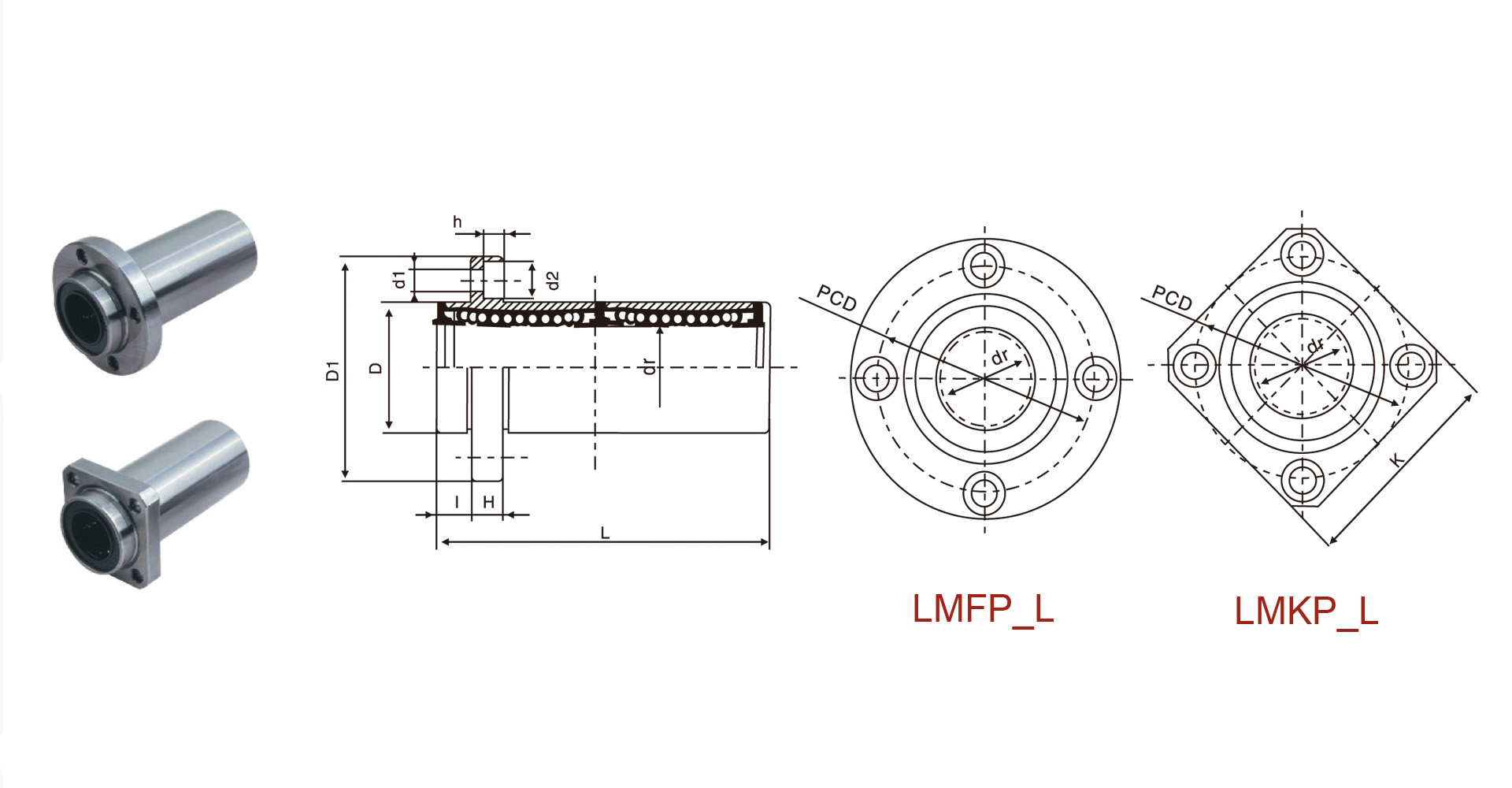

      Data Sheet of Linear Bearings LMF/KP_L Series

      Part No.Main Dimensions and ToleranceEccen-tricityBasic Load Rating CNBasic Load Rating CoNWeight (g)
      Seal TypeBall Circuitdr (mm)Tolerance (μm)D (mm)Tolerance (μm)L (mm)Tolerance (μm)I (mm)D1 (mm)K (mm)H (mm)PCD (mm)d1xd2xh (mm)
      LMFP6LUULMKP6LUU460
      -10      		120
      -13      		35±300528225203.5x6x3.11532352931
      LMFP8LUULMKP8LUU481545532255243.5x6x3.143178451
      ☆LMFP10LUU☆LMKP10LUU410190
      -16      		55640306294.5×7.5×4.1588110098
      LMFP12LUU☆LMKP12LUU4122157-200642326324.5×7.5×4.18131570110
      LMFP13LUULMKP13LUU4132361643346334.5×7.5×4.18131570130
      ☆LMFP16LUU☆LMKP16LUU5162870648376384.5×7.5×4.112302350190
      ☆LMFP20LUU☆LMKP20LUU5200
      -12      		320
      -19      		80854428435.5x9x5.12014002740260
      ☆LMFP25LUU☆LMKP25LUU62540112-300862508515.5x9x5.115603140540
      ☆LMFP30LUU☆LMKP30LUU6304512310745810606.6x11x6.124905490680
      LMFP35LUULMKP35LUU6350
      -15      		520
      -22      		13510826410676.6x11x6.125265062701020
      ☆LMFP40LUU☆LMKP40LUU6406015113967513789x14x8.1343080401570
      LMFP50LUULMKP50LUU65080192131169213989x14x8.16080159003600
      LMFP60LUULMKP60LUU6600
      -20      		900
      -25      		209-400181341061811211×17.5×10.87550200004500
      Note : ☆ means steel retainer is available.

      Data Sheet of Linear Bearings LMHP_L Series

      Part No.

      Main Dimensions and Tolerance

      Eccen-tricity

      Basic Load Rating CN

      Basic Load Rating CoN

      Weight (g)

      Seal Type

      Ball Circuit

      dr (mm)

      Tolerance (μm)

      D (mm)

      Tolerance (μm)

      L ±0.3 (mm)

      Tolerance (μm)

      I (mm)

      D1 (mm)

      W(mm)

      H (mm)

      A (mm)

      F (mm)

      d1xd2xh (mm)

      LMHP6LUU

      4

      6

      0
      -10

      12

      0
      -13

      35

      ±300

      5

      28

      18

      5

      20

      –

      3.5x6x3.1

      15

      323

      529

      28

      LMHP8LUU

      4

      8

      15

      45

      5

      32

      21

      5

      24

      –

      3.5x6x3.1

      431

      784

      47

      ☆

      LMHP10LUU

      4

      10

      19

      0
      -16

      55

      -200

      6

      40

      25

      6

      29

      –

      4.5×7.5×4.1

      588

      1100

      90

      ☆

      LMHP12LUU

      4

      12

      21

      58

      6

      42

      27

      6

      32

      –

      4.5×7.5×4.1

      813

      1570

      102

      ☆

      LMHP13LUU

      4

      13

      23

      61

      6

      43

      29

      6

      33

      –

      4.5×7.5×4.1

      813

      1570

      123

      ☆

      LMHP16LUU

      5

      16

      28

      70

      -300

      6

      48

      34

      6

      31

      22

      4.5×7.5×4.1

      1230

      2350

      182

      ☆

      LMHP20LUU

      5

      20

      0
      -12

      32

      0
      -19

      80

      8

      54

      38

      8

      36

      24

      5.5x9x5.1

      20

      1400

      2740

      247

      ☆

      LMHP25LUU

      6

      25

      40

      112

      8

      62

      46

      8

      40

      32

      5.5x9x5.1

      1560

      3140

      525

      ☆

      LMHP30LUU

      6

      30

      45

      123

      10

      74

      51

      10

      49

      35

      6.6x11x6.1

      2490

      5490

      645
