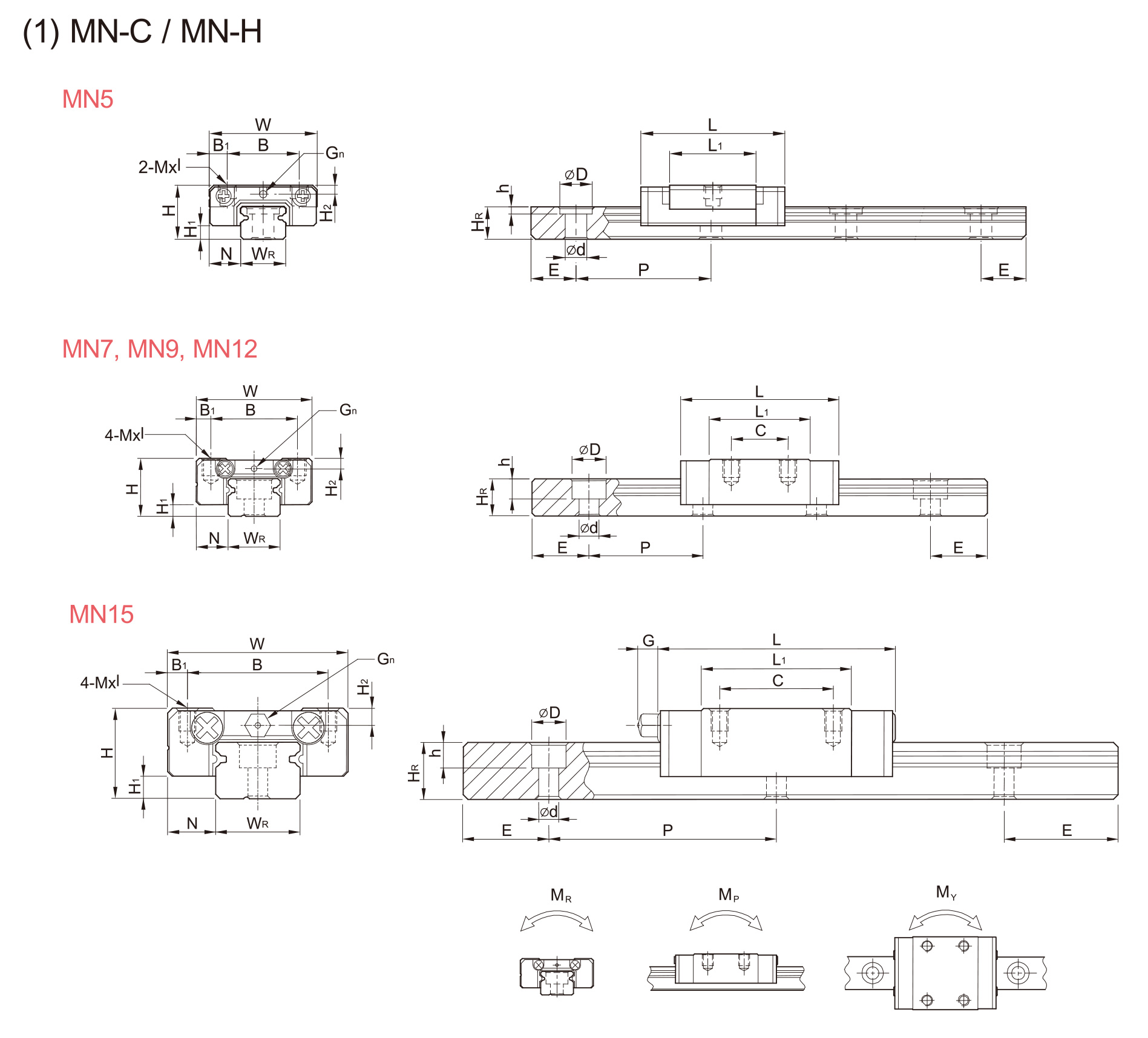

| Model NO. | Dimensions of | Dimensions of | Dimensions of | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | ||||||||||||||||||||
| Assembly(mm) | Block (mm) | Rail (mm) | MR | MP | MY | Block | Rail | |||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | Gn | MxL | H2 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | kN-m | kN-m | kN-m | kg | kg/m | |
| MN5C | 6 | 1.5 | 3.5 | 12 | 8 | 2 | – | 9.6 | 16 | – | φ0.8 | M2x1.5 | 1 | 5 | 3.6 | 3.6 | 0.8 | 2.4 | 15 | 5 | M2x6 | 0.54 | 0.86 | 2 | 1.3 | 1.3 | 0.008 | 0.15 |
| MN7C | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 13.5 | 22.5 | – | φ1.2 | M2x2.5 | 1.5 | 7 | 4.8 | 4.2 | 2.3 | 2.4 | 15 | 5 | M2x6 | 0.98 | 1.24 | 4.7 | 2.84 | 2.84 | 0.01 | 0.22 |
| MN7H | 13 | 21.8 | 30.8 | 1.37 | 1.96 | 7.64 | 4.8 | 4.8 | 0.015 | |||||||||||||||||||
| MN9C | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 18.9 | 28.9 | – | φ1.4 | M3x3 | 1.8 | 9 | 6.5 | 6 | 3.5 | 3.5 | 20 | 7.5 | M3x8 | 1.86 | 2.55 | 11.76 | 7.35 | 7.35 | 0.016 | 0.38 |
| MN9H | 16 | 29.9 | 39.9 | 2.55 | 4.02 | 19.6 | 18.62 | 18.62 | 0.026 | |||||||||||||||||||
| MN12C | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.7 | 34.7 | – | φ2 | M3x3.5 | 2.5 | 12 | 8 | 6 | 4.5 | 3.5 | 25 | 10 | M3x8 | 5.84 | 3.92 | 25.48 | 13.72 | 13.72 | 0.034 | 0.65 |
| MN12H | 20 | 32.4 | 45.4 | 3.72 | 5.88 | 38.22 | 36.26 | 36.26 | 0.054 | |||||||||||||||||||
| MN15C | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 26.7 | 42.1 | 4.5 | M3 | M3x4 | 3 | 15 | 10 | 6 | 4.5 | 3.5 | 40 | 15 | M3x10 | 4.61 | 5.59 | 45.08 | 21.56 | 21.86 | 0.059 | 1.06 |
| MN15H | 25 | 43.4 | 58.8 | 6.37 | 9.11 | 73.5 | 57.82 | 57.82 | 0.092 | |||||||||||||||||||
| Note: 1kgf = 9.81N | ||||||||||||||||||||||||||||
