SFY Series

Question 1

Q: What professional certificates do you have？

Answer

A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

Question 2

Q: Can I get a sample?

Answer

A: Yes, sample is available. If you are interested, you can contact us by e-mail (info@shac-europe.com) to get more photos and information.

Question 3

Q: Delivery Date?

Answer

A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

Question 4

Q: What is your shipping optional?

Answer

A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

Question 5

Q: Whether to accept customized products?

Answer

A: You can contact us by e-mail (info@shac-europe.com ) and we will recommend the most suitable project according to your requirements.

Question 6

Q: What is your payment methods?

Answer

A: T/T in advance.

Question 7

Q: Which countries do you have distributor?

Answer

A: SHAC agent in Asia: Singapore, Japan, India
SHAC agent in Europe: Hungary, Turkey, Israel
SHAC agent in South America: Brazil

Question 8

Q: Where is your main market?

Answer

A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

Question 9

Q: Can I be a SHAC agent?

Answer

A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail (info@shac-europe.com ) , we can start talk and get to know more about each other.

Circulation type	Model		Characteristic
Circulation type	Single Nut	Double Nuts	Characteristic
Internal Circulation type	SFK SFNU SFNI SCI	DFNU DFNI	•Dedicated diameter of screw takes only little space. •Applicable to those with smaller lead / the outside diameter of the screw
External Circulation type	SFV XFV	DFV	•Economy •Applicable to larger lead and diameter. •Applicable for high loading purpose.
End-caps Circulation type	SFS SFY	DFS	•Suitable for high speed positioning

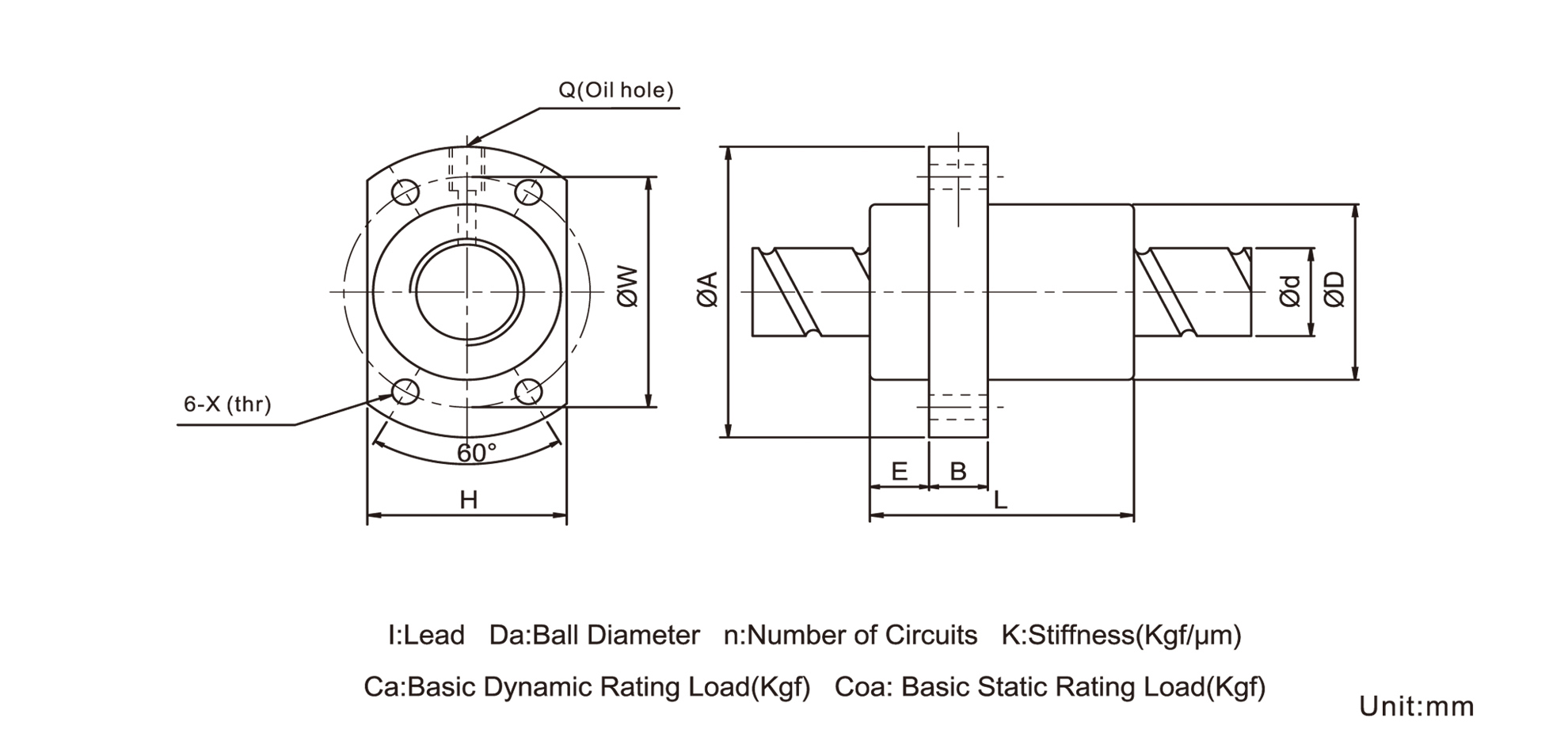

Model No.	d	l	Da	Dimension										Load Rating
Model No.	d	l	Da	D	A	E	B	L	W	H	X	Q	n	Ca(kgf)	Coa(kgf)
SFY1616-3.6	16	16	2.778	32	53	10	10	45	42	34	4.5	M6x1	1.8*2	886	1994
SFY1632-1.6	16	32	2.778	32	53	10	10	42.5	42	34	4.5	M6x1	0.8*2	419	915
SFY2020-3.6	20	20	3.175	39	62	13	10	52	50	41	5.5	M6x1	1.8*2	1187	2894
SFY2040-1.6	20	40	3.175	39	62	13	10	50	50	41	5.5	M6x1	0.8*2	556	1311
SFY2040-3.6	20	40	3.175	39	62	13	10	90	50	41	5.5	M6x1	1.8*2	1117	2949
SFY2525-3.6	25	25	3.969	47	74	15	12	64	60	49	6.6	M6x1	1.8*2	1773	4524
SFY2525-5.6	25	25	3.969	47	74	15	12	89	60	49	6.6	M6x1	2.8*2	2593	7038
SFY2550-1.6	25	50	3.969	47	74	15	12	60	60	49	6.6	M6x1	0.8*2	832	2050
SFY2550-3.6	25	50	3.969	47	74	15	12	110	60	49	6.6	M6x1	1.8*2	1671	4612
SFY3232-3.6	32	32	4.762	58	92	17	12	78	74	60	9	M6x1	1.8*2	2508	6848
SFY3232-5.6	32	32	4.762	58	92	17	12	110	74	60	9	M6x1	2.8*2	3667	10652
SFY3264-1.6	32	64	4.762	58	92	17	12	71	74	60	9	M6x1	0.8*2	1172	3084
SFY4040-3.6	40	40	6.35	73	114	19.5	15	99	93	75	11	M6x1	1.8*2	4131	11587
SFY4040-5.6	40	40	6.35	73	114	19.5	15	139	93	75	11	M6x1	2.8*2	6040	18024
SFY4080-1.6	40	80	6.35	73	114	19.5	15	91	93	75	11	M6x1	0.8*2	1939	5253
SFY5050-3.6	50	50	7.938	90	135	21.5	20	117	112	92	14	M6x1	1.8*2	6185	18032
SFY5050-5.6	50	50	7.938	90	135	21.5	20	167	112	92	14	M6x1	2.8*2	9044	28049
SFY50100-1.6	50	100	7.938	90	135	21.5	20	111	112	92	14	M6x1	0.8*2	2803	7793

SFY Ball Screw Nut

Ball Screw Nut

SFY Series

Features:

Size Table of SFY Screws
