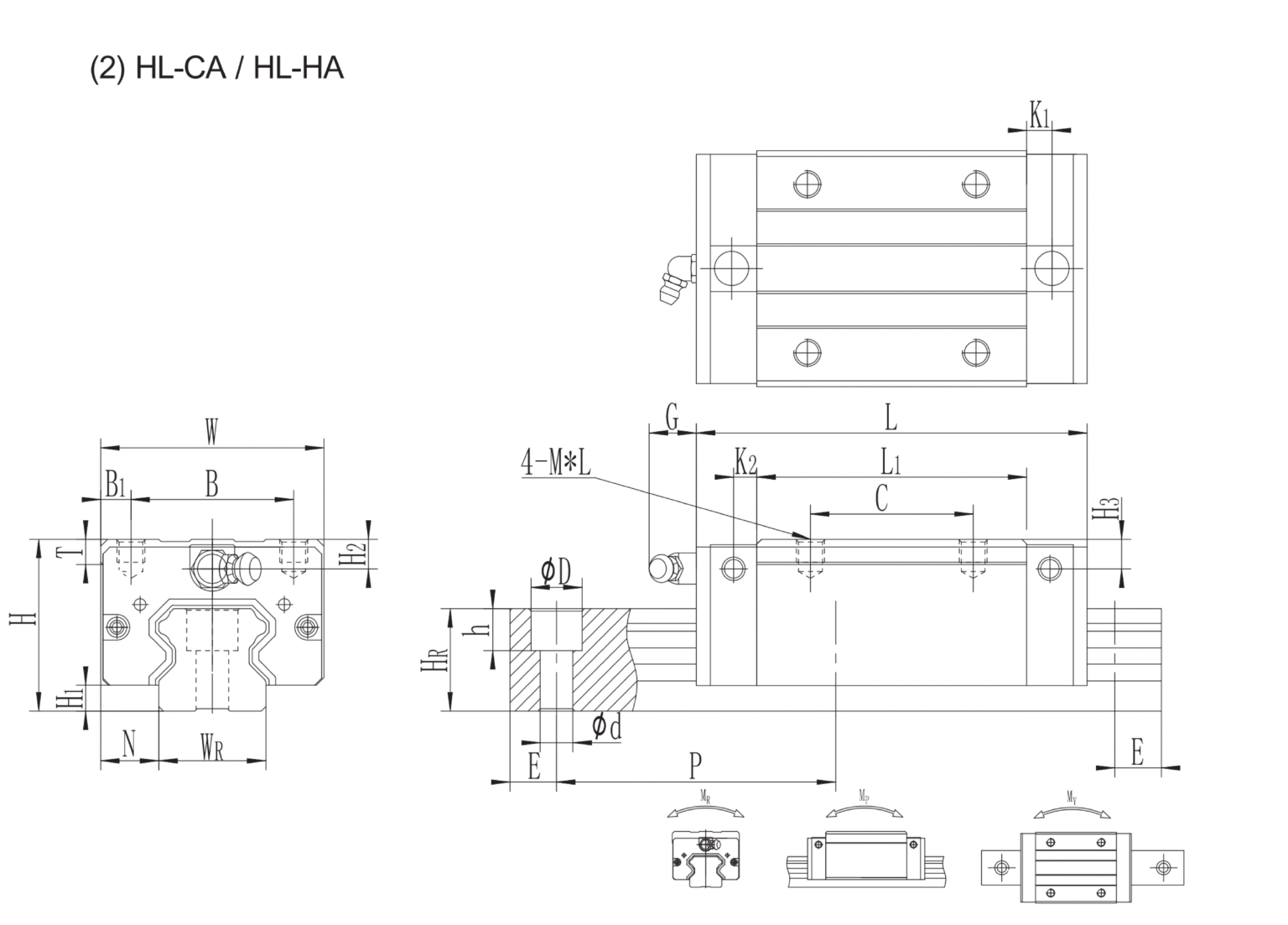

GHL-CA/HL-HA Linear Guideways

Model NO.

Dimensions of
Assembly(mm)

Dimensions of
Block (mm)

Dimensions of
Rail (mm)

Mounting Bolt for Rail

Basic Dynamic Load Rating

Basic Static Load Rating

Static Rated Moment

Weight

MR kN-m

MP kN-m

MY kN-m

Block kg

Rail kg/m

H

H1

N

W

B

B1

C

L1

L

K1

K2

G

MxL

T

H2

H3

WR

HR

D

h

d

P

E

(mm)

C(kN)

C0(kN)

HL15CA

24

4.3

9.5

34

26

4

26

39.4

61.4

10

4.85

5.3

M4x4

6

3.95

3.7

15

15

7.5

5.3

4.5

60

20

M4x16

14.7

23.47

0.12

0.10

0.10

0.14

1.45

HL25CA

36

5.5

12.5

48

35

6.5

35

58

84

15.7

6

12

M6x6

8

6

5

23

22

11

9

7

60

20

M6x20

34.9

52.82

0.42

0.33

0.33

0.42

3.21

HL25HA

50

78.6

104.6

18.5

42.2

69.07

0.56

0.57

0.57

0.57

HL30CA

42

6

16

60

40

10

40

70

97.4

20.25

6

12

M8x10

8.5

6.5

10.8

28

26

14

12

9

80

20

M8x25

48.5

71.87

0.66

0.53

0.53

0.78

4.47

HL30HA

60

93

120.4

21.75

58.6

93.99

0.88

0.92

0.92

1.03

HL35CA

48

7.5

18

70

50

10

50

80

112.4

20.6

7

12

M8x12

10.2

9

12.6

34

29

14

12

9

80

20

M8x25

64.6

93.88

1.16

0.81

0.81

1.14

6.3

HL35HA

72

105.8

138.2

22.5

77.9

122.77

1.54

1.40

1.40

1.52

HL45CA

60

9.5

20.5

86

60

13

60

97

139.4

23

10

12.9

M10x17

16

8.5

20.5

45

38

20

17

14

105

22.5

M12x35

103.8

146.71

1.98

1.55

1.55

2.08

10.41

HL45HA

80

128.8

171.2

28.9

125.3

191.85

2.63

2.68

2.68

2.75

HL55CA

70

13

23.5

100

75

12.5

75

117.7

166.7

27.35

11

12.9

M12x18

17.5

12

19

53

44

23

20

16

120

30

M14x45

153.2

211.23

3.69

2.64

2.64

3.25

15.08

HL55HA

95

155.8

204.8

36.4

184.9

276.23

4.88

4.57

4.57

4.27

 Note:1kgf = 9.81N
