The KH series products are compact linear bearings that can be combined with the shaft to form a linear motion system. The KH bearings are made by pressing outer ring.KH bearing series is designed compactly, with low space requirements, suitable for rapid acceleration and high-speed operation. They are lightweight and feature double-sided double-sealed bearings. The rollers of the shaft need to be hardened and ground.
KH series widely used in CNC machine tools,automation equipment and precision instruments.

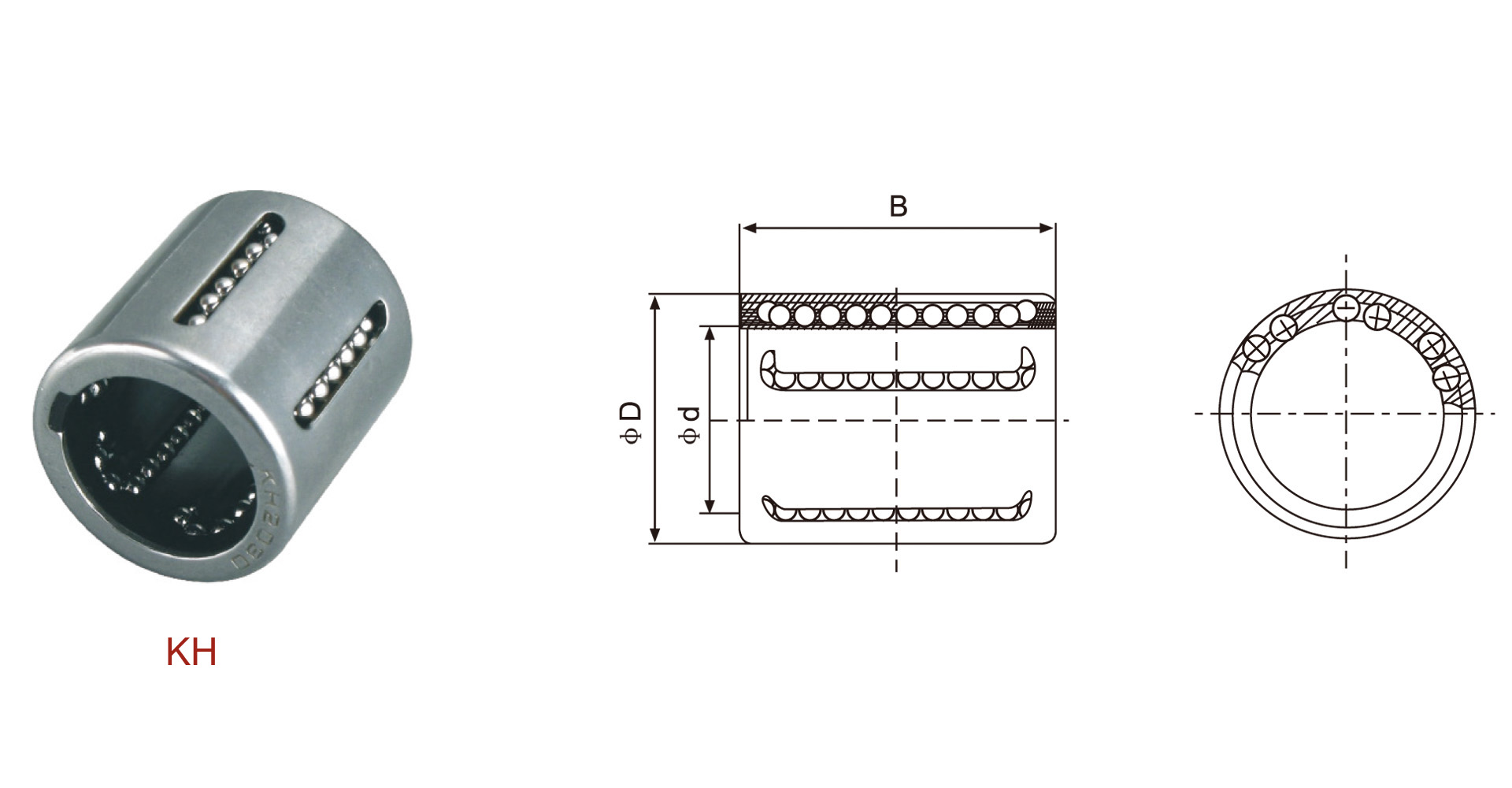

Part No. | Main Dimensions | Basic Load Rating CN | Basic Load Rating CoN | Weight (g) | ||
Φd | ΦD | B | ||||
KH-0622 | 6 | 12 | 22 | 400 | 239 | 7 |
KH-0824 | 8 | 15 | 24 | 435 | 280 | 12 |
KH-1026 | 10 | 17 | 26 | 500 | 370 | 14.5 |
KH-1228 | 12 | 19 | 28 | 620 | 510 | 18.5 |
KH-1428 | 14 | 21 | 28 | 620 | 520 | 20.5 |
KH-1630 | 16 | 24 | 30 | 800 | 620 | 27.5 |
KH-2030 | 20 | 28 | 30 | 950 | 790 | 32.5 |
KH-2540 | 25 | 35 | 40 | 1990 | 1670 | 66 |
KH-3050 | 30 | 40 | 50 | 2800 | 2700 | 95 |
KH-4060 | 40 | 52 | 60 | 4400 | 4450 | 182 |
KH-5070 | 50 | 62 | 70 | 5500 | 6300 | 252 |
