    M Series-Miniature Type Linear Guideways

    Miniature Type Linear Guideways

    GMW-C/GMW-HLinear Guideways

    M Series

    Characteristic:

    • Precision: C, H, P.
    • Size: 5~15.
    • GCR15 & Stainless steelmaterial available.
    • Strict quality control
    Quote Now

      info@shac-europe.com

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        info@shac-europe.com

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

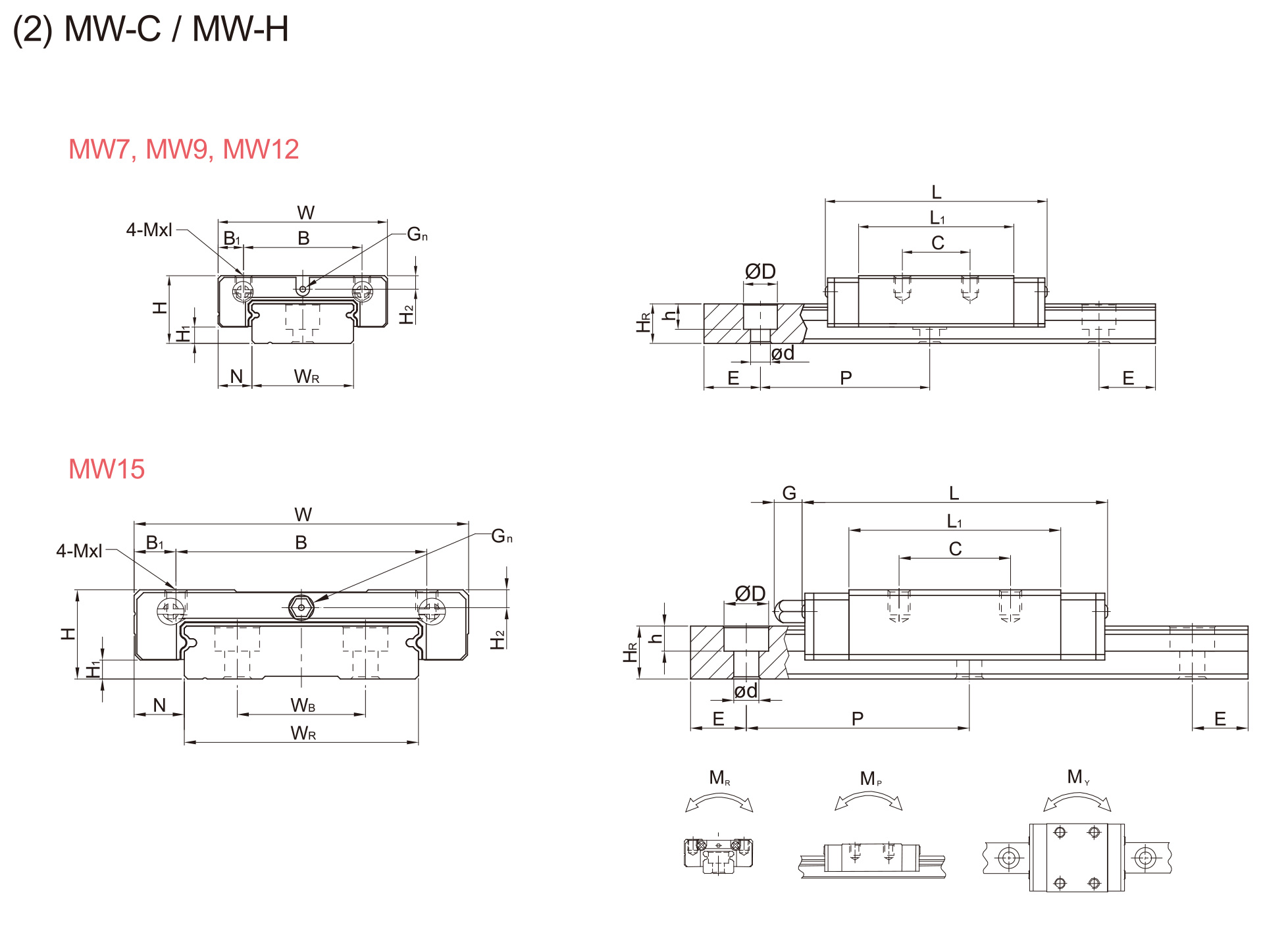

        Model NO.

        Dimensions of
        Assembly(mm)

        Dimensions of
        Block (mm)

        Dimensions of
        Rail (mm)

        Mounting Bolt for Rail

        Basic Dynamic Load Rating

        Basic Static Load Rating

        Static Rated Moment

        Weight

        MR
        kN-m

        MP
        kN-m

        MY
        kN-m

        Block
        kg

        Rail
        kg/m

        H

        H1

        N

        W

        B

        B1

        C

        L1

        L

        G

        Gn

        MxL

        H2

        WR

        WB

        HR

        D

        h

        d

        P

        E

        (mm)

        C(kN)

        C0(kN)

        MW7C

        9

        1.9

        5.5

        25

        19

        3

        10

        21

        31.2

        –

        ø1.2

        M3x3

        1.85

        14

        –

        5.2

        6

        3.2

        3.5

        30

        10

        M3x6

        1.37

        2.06

        15.70

        7.14

        7.14

        0.020

        0.51

        MW7H

        19

        30.8

        41

        1.77

        3.14

        23.45

        15.53

        15.53

        0.029

        MW9C

        12

        2.9

        6

        30

        21

        4.5

        12

        27.5

        39.3

        –

        ø1.2

        M3x3

        2.4

        18

        –

        7

        6

        4.5

        3.5

        30

        10

        M3x8

        2.75

        4.12

        40.12

        18.96

        18.96

        0.040

        0.91

        MW9H

        23

        3.5

        24

        38.5

        50.7

        3.43

        5.89

        54.54

        34.00

        34.00

        0.057

        MW12C

        14

        3.4

        8

        40

        28

        6

        15

        31.3

        46.1

        –

        ø1.2

        M3x3.6

        2.8

        24

        –

        8.5

        8

        4.5

        4.5

        40

        15

        M4x8

        3.92

        5.59

        70.24

        27.80

        27.80

        0.071

        1.49

        MW12H

        28

        45.6

        60.4

        5.10

        8.24

        102.70

        57.37

        57.37

        0.103

        MW15C

        16

        3.4

        9

        60

        45

        7.5

        20

        38

        54.8

        5.2

        M3

        M4x4.2

        3.2

        42

        23

        9.5

        8

        4.5

        4.5

        40

        15

        M4x10

        6.77

        9.22

        199.34

        56.66

        56.66

        0.143

        2.86

        MW15H

        35

        57

        73.8

        8.93

        13.38

        299.01

        122.60

        122.60

        0.215
