Overview:

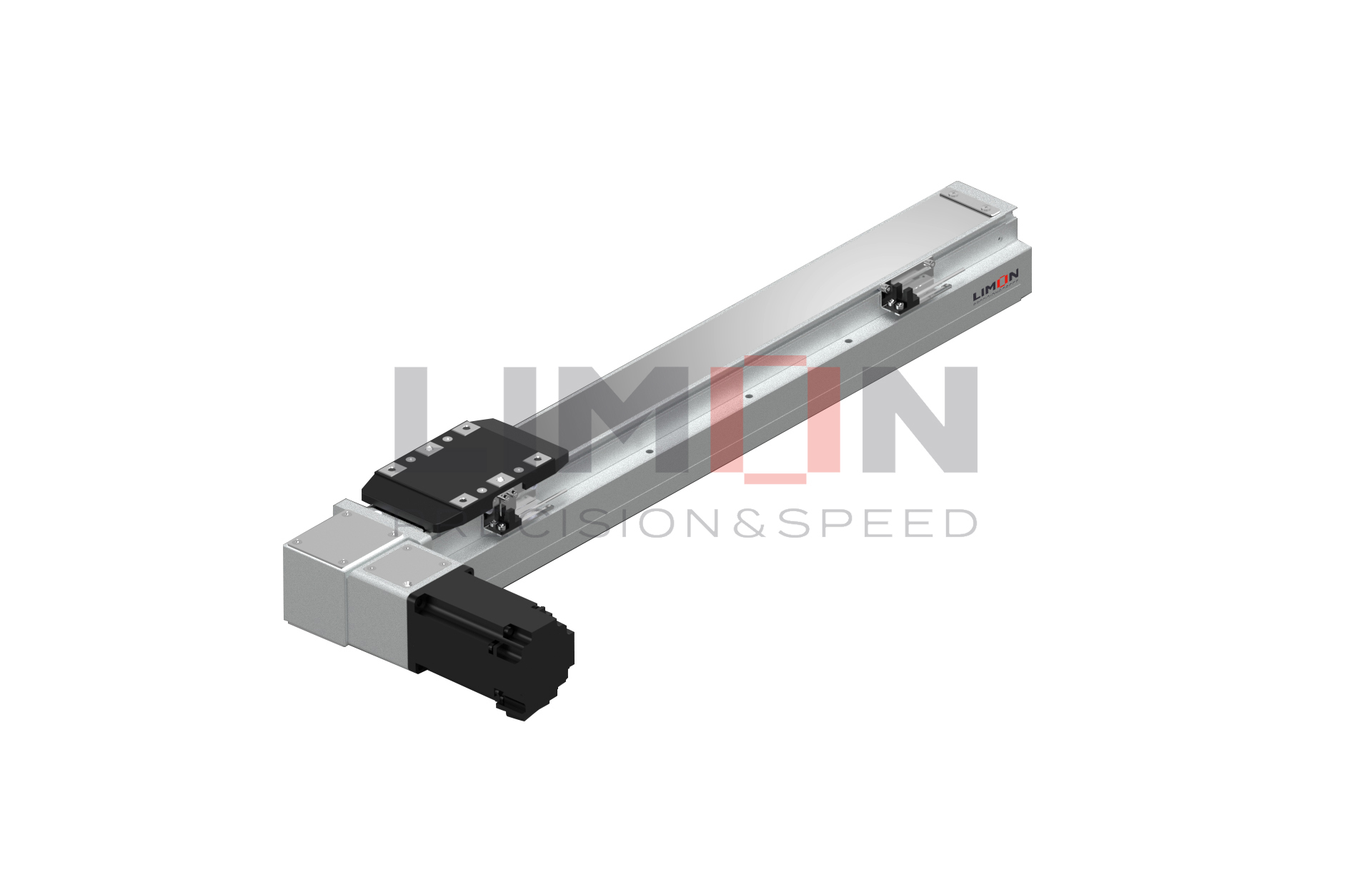

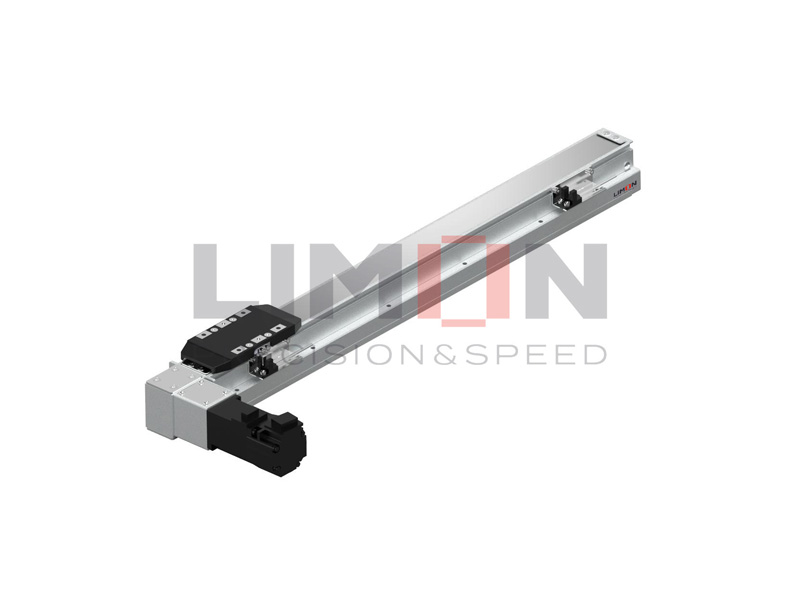

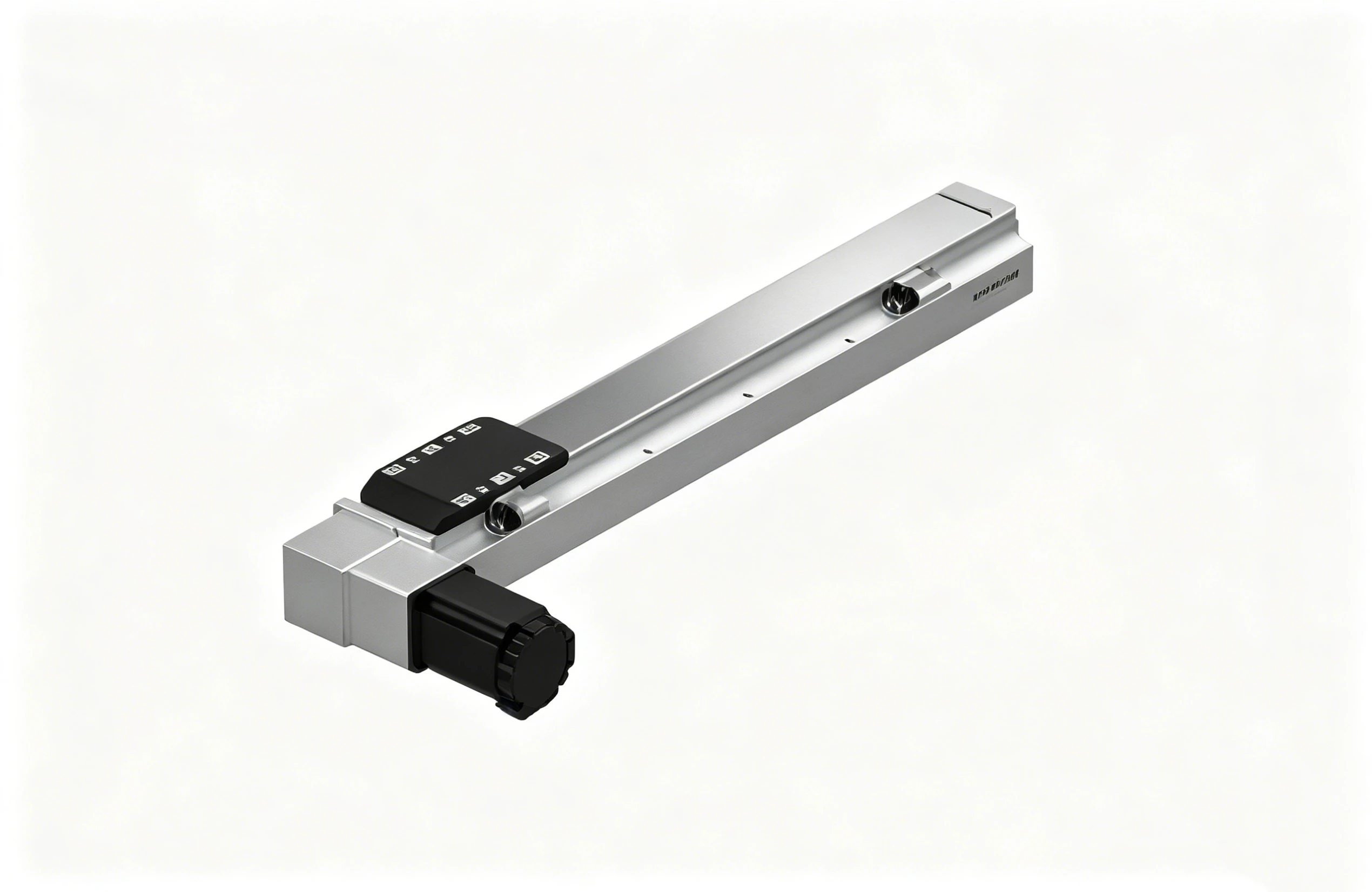

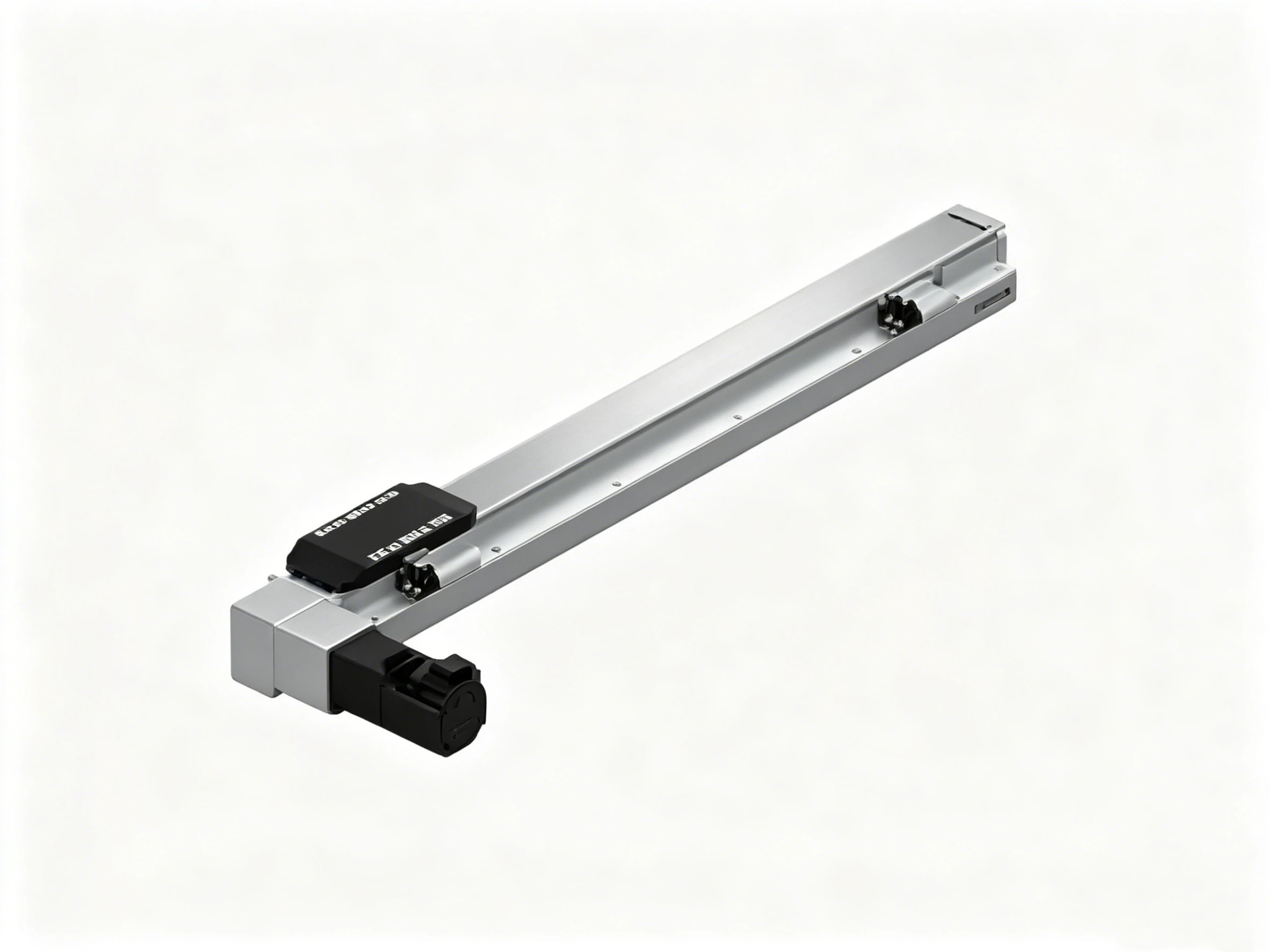

GTC series modules are belt-driven linear actuators, embedded within the guide rails, designed for projects with light loads and limited space usage.
Basic info:
Drive Type: Belt driven type, close type
Stroke: max 1500mm
Characteristics:
Adjustable Belt Tension
- External belt tension adjustment is possible without disassembly.
GTC-1
- By using an external integrated oil injection hole design,all linear blocks can be lubricated at once without the need for disassembly maintenance.
Belt Options
- PU Belt: suitable for clean room environment, produces less dust but is noisy.
- Rubber belt: suitable for general environment, low noise but more dust.
High Precision Embedded Ball Guide
- Grinding after embedded the steel bar, the running straightness and flatness are significantly enhanced.
- Th rails’s pacing width is increased to accommodate more lateral torque.

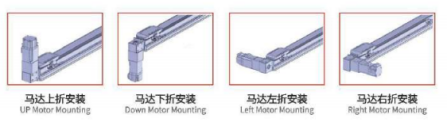

Flexible Motor Collocation
- To increase the flexibility of the machine design, alternative motor brands, powers, and mounting direction can be chosen as needed.
Industry:
- Automated Production Line – Automotive assembly, electronics manufacturing, home appliance production
- Electronics & Semiconductor – Chip packaging, SMT placement, LCD inspection
- Packaging & Logistics – Food packaging, parcel sorting, warehouse automation
- Medical Equipment – Diagnostic instruments, testing devices, surgical robots
- Printing & Advertising – Large-format printing, laser engraving, digital printing
- Research & Laboratory – Lab instruments, sample testing, biotechnology
- Food & Beverage – Filling machines, labeling machines, packaging lines
- New Energy Industry – Lithium battery production, solar panel assembly
