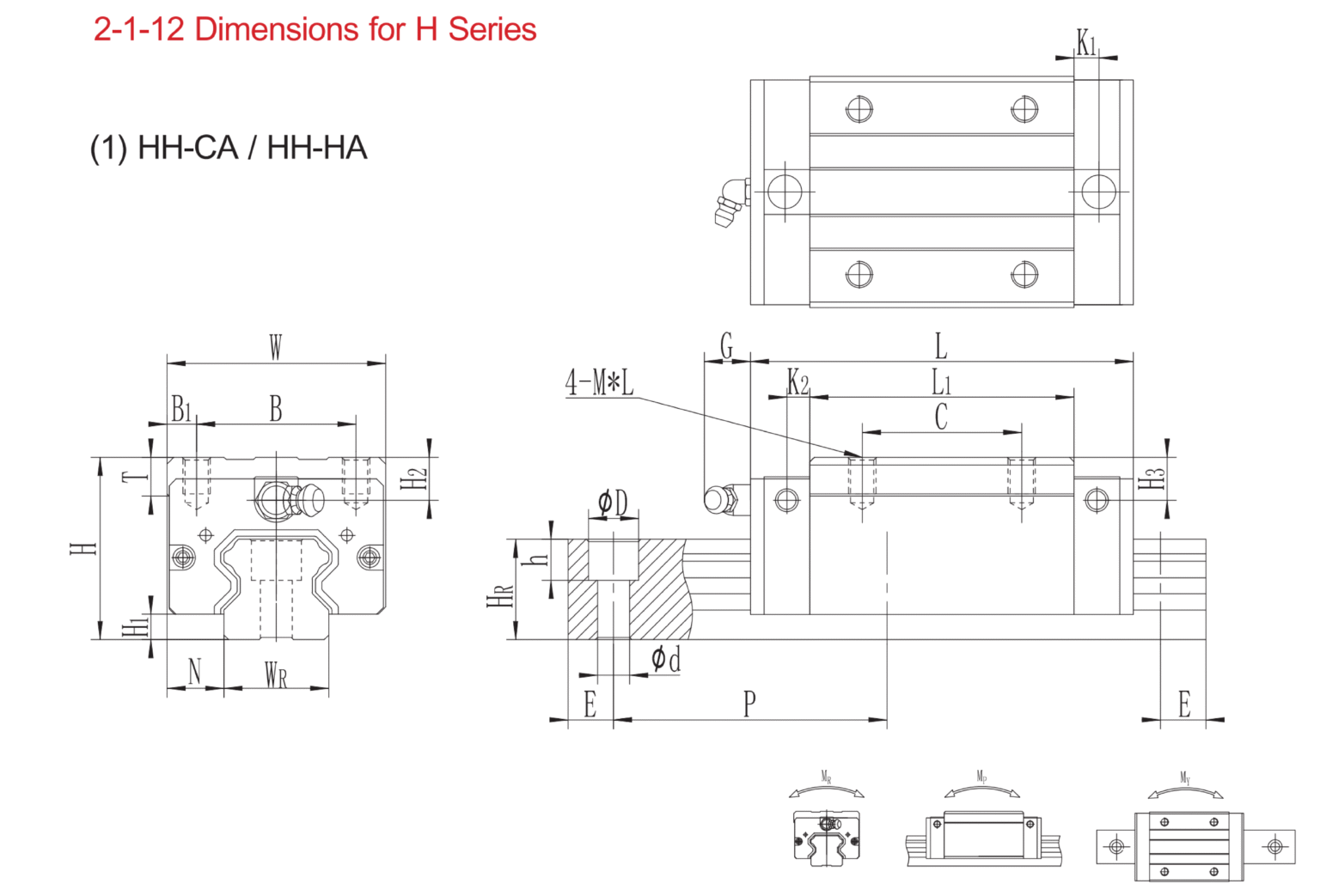

GHH-CA/HH-HA Linear Guideways

Model NO.

Dimensions of
Assembly(mm)

Dimensions of
Block (mm)

Dimensions of
Rail (mm)

Mounting Bolt for Rail

Basic Dynamic Load Rating

Basic Static Load Rating

Static Rated Moment

Weight

MR
kN-m

MP
kN-m

MY
kN-m

Block
kg

Rail
kg/m

H

H1

N

W

B

B1

C

L1

L

K1

K2

G

MxL

T

H2

H3

WR

HR

D

h

d

P

E

(mm)

C(kN)

C0(kN)

HH15CA

28

4.3

9.5

34

26

4

26

39.4

61.4

10

4.85

5.3

M4x5

6

7.95

7.7

15

15

7.5

5.3

4.5

60

20

M4x16

14.7

23.47

0.12

0.10

0.10

0.18

1.45

HH20CA

30

4.6

12

44

32

6

36

50.5

77.5

12.5

6

12

M5x6

8

6

6

20

17.5

9.5

8.5

6

60

20

M5x16

27.1

36.68

0.27

0.20

0.20

0.3

2.21

HH20HA

50

65.2

92.2

12.6

32.7

47.96

0.35

0.35

1.35

0.39

HH25CA

40

5.5

12.5

48

35

6.5

35

58

84

15.7

6

12

M6x8

8

10

9

23

22

11

9

7

60

20

M6x20

34.9

52.82

0.42

0.33

1.33

0.51

3.21

HH25HA

50

78.6

104.6

18.5

42.2

69.07

0.56

0.57

1.57

0.69

HH30CA

45

6

16

60

40

10

40

70

97.4

20.25

6

12

M8x10

8.5

9.5

13.8

28

26

14

12

9

80

20

M8x25

48.5

71.87

0.66

0.53

1.53

0.88

4.47

HH30HA

60

93

120.4

21.75

58.6

93.99

0.88

0.90

1.90

1.16

HH35CA

55

7.5

18

70

50

10

50

80

112.4

20.6

7

12

M8x12

10.2

16

19.6

34

29

14

12

9

80

20

M8x25

64.6

93.88

1.16

0.81

1.81

1.45

6.30

HH35HA

72

105.8

138.2

22.5

77.9

122.77

1.54

1.40

2.40

1.92

HH45CA

70

9.5

20.5

86

60

13

60

97

139.4

23

10

12.9

M10x17

16

18.5

30.5

45

38

20

17

14

105

22.5

M12x35

103.8

146.71

1.98

1.55

2.55

2.73

10.41

HH45HA

80

128.8

171.2

28.9

125.3

191.85

2.63

2.68

3.68

3.61

HH55CA

80

13

23.5

100

75

12.5

75

117.7

166.7

27.35

11

12.9

M12x18

17.5

22

29

53

44

23

20

16

120

30

M14x45

153.2

211.23

3.69

2.64

3.64

4.17

15.08

HH55HA

95

155.8

204.8

36.4

184.9

276.23

4.86

4.57

5.57

5.49

HH65CA

90

15

31.5

126

76

25

70

144.2

200.2

43.1

14

12.9

M16x20

25

15

15

63

53

26

22

18

150

35

M16x50

213.2

287.48

6.65

4.27

5.27

7.00

21.18

HH65HA

120

203.6

259.6

47.6

277.8

420.17

9.38

7.38

8.38

9.82
