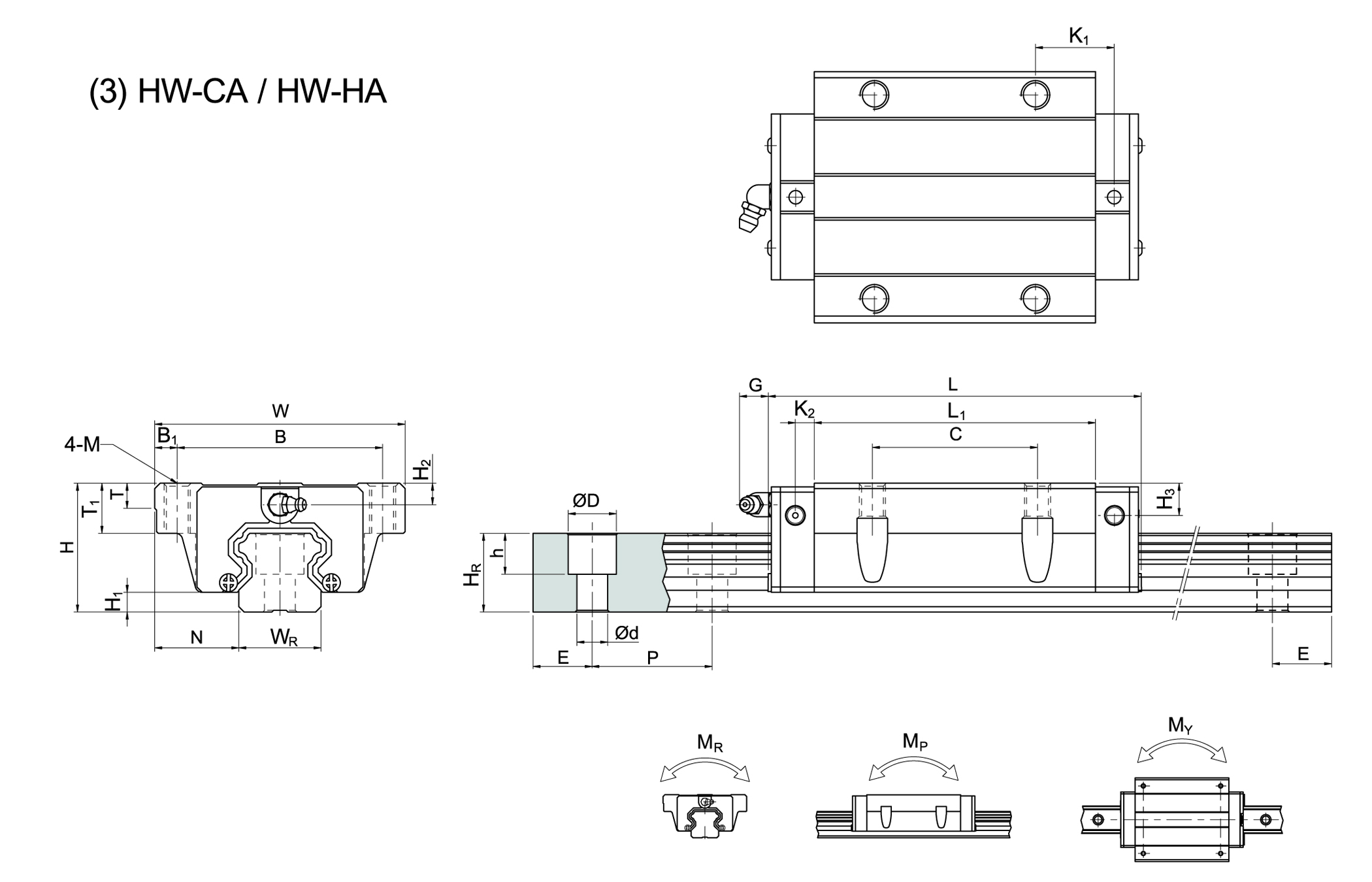

GHW-CA/HW-HA Linear Guideways

Model NO.

Dimensions of
Assembly(mm)

Dimensions of
Block (mm)

Dimensions of
Rail (mm)

Mounting Bolt for
Rail

Basic Dynamic Load Rating

Basic Static Load Rating

Static Rated Moment

Weight

MR
kN-m

MP
kN-m

MY
kN-m

Block
kg

Rail
kg/m

H

H1

N

W

B

B1

C

L1

L

K1

K2

G

M

T

T1

H2

H3

WR

HR

D

h

d

P

E

(mm)

C(kN)

C0(kN)

HW15CA

24

4.3

16

47

38

4.5

30

39.4

61.4

8

4.85

5.3

M5

6

8.9

3.95

3.7

15

15

7.5

5.3

4.5

60

20

M4x16

14.7

23.47

0.12

0.10

0.10

0.17

1.45

HW20CA

30

4.6

21.5

63

53

5

40

50.5

77.5

10.25

6

12

M6

8

10

6

6

20

17.5

9.5

8.5

6

60

20

M5x16

27.1

36.68

0.27

0.20

0.20

0.40

2.21

HW20HA

65.2

92.2

17.6

32.7

47.96

0.35

0.35

0.35

0.52

HW25CA

36

5.5

23.5

70

57

6.5

45

58

84

10.7

6

12

M8

8

14

5

5

23

22

11

9

7

60

20

M6x20

34.9

52.82

0.42

0.33

0.33

0.59

3.21

HW25HA

78.6

104.6

21

42.2

69.07

0.56

0.57

0.57

0.80

HW30CA

42

6

31

90

72

9

52

70

97.4

14.25

6

12

M10

8.5

16

6.5

10.8

28

26

14

12

9

80

20

M8x25

48.5

71.87

0.66

0.53

0.53

1.09

4.47

HW30HA

93

120.4

25.75

58.6

93.99

0.88

0.92

0.92

1.44

HW35CA

48

7.5

33

100

82

9

62

80

112.4

14.6

7

12

M10

10.1

18

9

12.6

34

29

14

12

9

80

20

M8x25

64.6

93.88

1.16

0.81

0.81

1.56

6.30

HW35HA

105.8

138.2

27.5

77.9

122.77

1.54

1.40

1.40

2.06

HW45CA

60

9.5

37.5

120

100

10

80

97

139.4

13

10

12.9

M12

15.1

22

8.5

20.5

45

38

20

17

14

105

22.5

M12x35

103.8

146.71

1.98

1.55

1.55

2.79

10.41

HW45HA

128.8

171.2

28.9

125.3

191.85

2.63

2.68

2.68

3.69

HW55CA

70

13

43.5

140

116

12

95

117.7

166.7

17.35

11

12.9

M14

17.5

26.5

12

19

53

44

23

20

16

120

30

M14x45

153.2

211.23

3.69

2.64

2.64

4.52

15.08

HW55HA

155.8

204.8

36.4

184.9

276.23

4.86

4.57

4.57

5.96

HW65CA

90

15

53.5

170

142

14

110

144.2

200.2

23.1

14

12.9

M16

25

37.5

15

15

63

53

26

22

18

150

35

M16x50

213.2

287.48

6.65

4.27

4.27

9.17

21.18

HW65HA

203.6

259.6

52.8

277.8

420.17

9.38

7.38

7.38

12.86
