SFS Series

Question 1

Q: What professional certificates do you have？

Answer

A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

Question 2

Q: Can I get a sample?

Answer

A: Yes, sample is available. If you are interested, you can contact us by e-mail (sales@SHAC.com) to get more photos and information.

Question 3

Q: Delivery Date?

Answer

A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

Question 4

Q: What is your shipping optional?

Answer

A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

Question 5

Q: Whether to accept customized products?

Answer

A: You can contact us by e-mail (sales@SHAC.com ) and we will recommend the most suitable project according to your requirements.

Question 6

Q: What is your payment methods?

Answer

A: T/T in advance.

Question 7

Q: Which countries do you have distributor?

Answer

A: SHAC agent in Asia: Singapore, Japan, India
SHAC agent in Europe: Hungary, Turkey, Israel
SHAC agent in South America: Brazil

Question 8

Q: Where is your main market?

Answer

A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

Question 9

Q: Can I be a SHAC agent?

Answer

A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail (sales@SHAC.com ) , we can start talk and get to know more about each other.

Circulation type	Model		Characteristic
Circulation type	Single Nut	Double Nuts	Characteristic
Internal Circulation type	SFK SFU SFI SCI	DFU DFI	•Dedicated diameter of screw takes only little space. •Applicable to those with smaller lead / the outside diameter of the screw
External Circulation type	SFV XFV	DFV	•Economy •Applicable to larger lead and diameter. •Applicable for high loading purpose.
End-caps Circulation type	SFS SFY	DFS	•Suitable for high speed positioning

Model No.	d	l	Da	Dimension									Load Rating
Model No.	d	l	Da	D	A	B	L	W	H	X	Q	n	Ca(kgf)	Coa(kgf)
SFS1205-2.8	12	5	2.5	24	40	10	30	32	30	4.5	M6x1	2.8×1	487	886
SFS1210-2.8	12	10	2.5	24	40	10	42	32	30	4.5	M6x1	2.8×1	472	865
SFS1605-3.8	15	5	2.778	28	48	10	31	38	40	5.5	M6x1	3.8×1	821	1706
SFS1610-2.8		10	2.778	28	48	10	42	38	40	5.5	M6x1	2.8×1	643	1311
SFS1616-1.8		16	2.778	28	48	10	43	38	40	5.5	M6x1	1.8×1	423	818
SFS1620-1.8		20	2.778	28	48	10	50	38	40	5.5	M6x1	1.8×1	424	841
SFS2005-3.8	20	5	3.175	36	58	10	33	47	44	6.6	M6x1	3.8×1	1135	2655
SFS2010-3.8		10	3.175	36	58	10	52	47	44	6.6	M6x1	3.8×1	1160	2765
SFS2020-1.8		20	3.175	36	58	10	52	47	44	6.6	M6x1	1.8×1	585	1268
SFS2505-3.8	25	5	3.175	40	62	10	33	51	48	6.6	M6x1	3.8×1	1239	3219
SFS2510-3.8		10	3.175	40	62	12	52	51	48	6.6	M6x1	3.8×1	1263	3333
SFS2525-1.8		25	3.175	40	62	12	60	51	48	6.6	M6x1	1.8×1	647	1578
SFS2525-2.8		25	3.175	40	62	12	85	51	48	6.6	M6x1	2.8×1	947	2454
SFS3205-3.8	32	5	3.175	50	80	12	35	65	62	9	M6x1	3.8×1	1407	4347
SFS3210-3.8	31	10	3.969	50	80	12	53	65	62	9	M6x1	3.8×1	1883	5234
SFS3220-2.8		20	3.969	50	80	12	72	65	62	9	M6x1	2.8×1	1459	3954
SFS3232-1.8		32	3.969	50	80	12	78	65	62	9	M6x1	1.8×1	962	2471
SFS3232-2.8		32	3.969	50	80	12	110	65	62	9	M6x1	2.8×1	1406	3844
SFS4005-3.8	40	5	3.175	63	93	14	39	78	70	9	M8x1	3.8×1	1544	5474
SFS4010-3.8	38	10	6.35	63	93	14	57	78	70	9	M8x1	3.8×1	3863	10046
SFS4020-2.8		20	6.35	63	93	14	78	78	70	9	M8x1	2.8×1	3815	9950
SFS4040-1.8		40	6.35	63	93	14	96	78	70	9	M8x1	1.8×1	1980	4783
SFS4040-2.8		40	6.35	63	93	14	136	78	70	9	M8x1	2.8×1	2895	7441
SFS5005-3.8	50	5	3.175	75	110	15	42	93	85	11	M8x1	3.8×1	1689	6883
SFS5010-3.8	48	10	6.35	75	110	18	57	93	85	11	M8x1	3.8×1	4314	12877
SFS5020-3.8		20	6.35	75	110	18	98	93	85	11	M8x1	3.8×1	4399	13333
SFS5050-1.8		50	6.35	75	110	18	117	93	85	11	M8x1	1.8×1	2254	6311
SFS5050-2.8		50	6.35	75	110	18	167	93	85	11	M8x1	2.8×1	3296	9817

SFS Ball Screw Nut

Ball Screw Nut

SFS Series

Features:

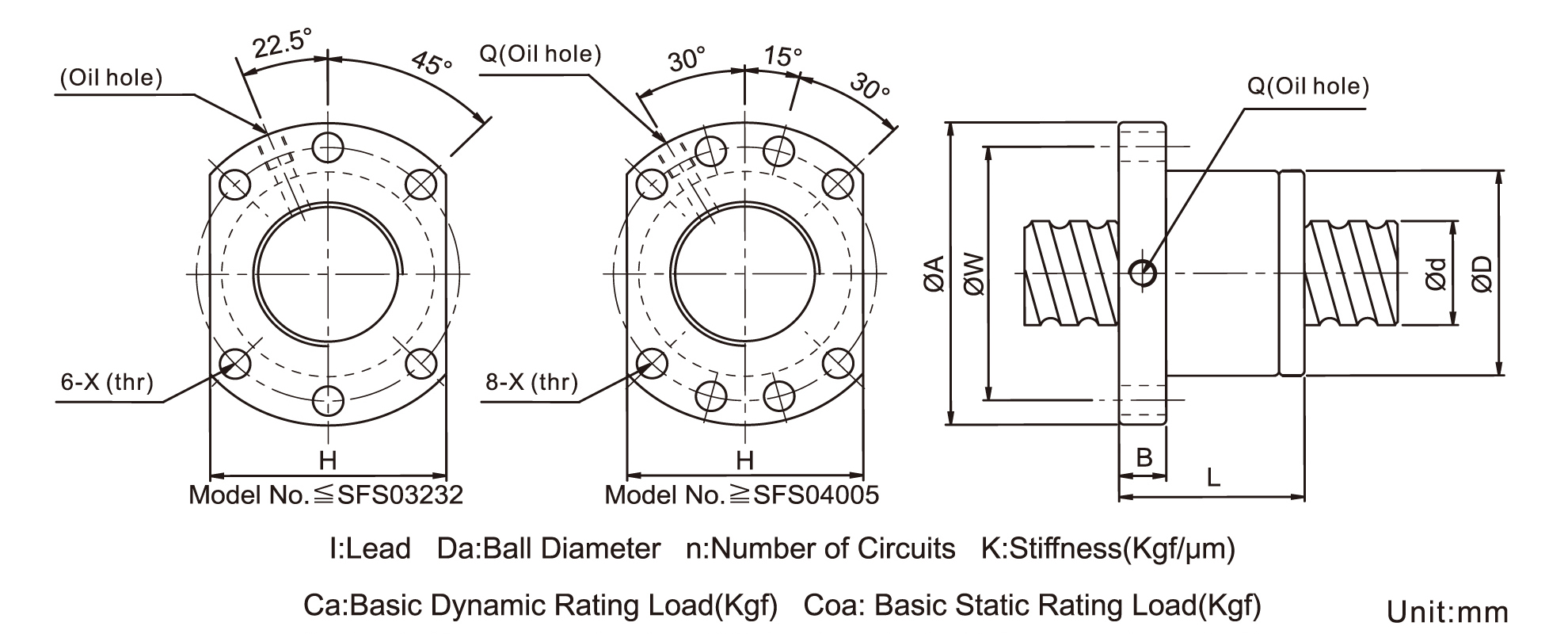

Size Table of SFS Screws

Frequently Asked Questions

Q: What professional certificates do you have？

Q: Can I get a sample?

Q: Delivery Date?

Q: What is your shipping optional?

Q: Whether to accept customized products?

Q: What is your payment methods?

Q: Which countries do you have distributor?

Q: Where is your main market?

Q: Can I be a SHAC agent?
